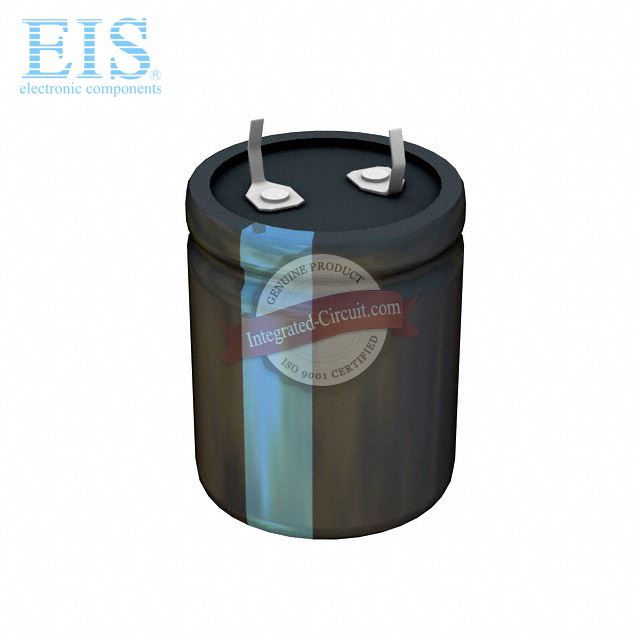

Cornell Dubilier Electronics 380LX561M180J022
- Mfg. Part Number
- 380LX561M180J022
- Manufacturer
- Cornell Dubilier Electronics
- Product Category
- Aluminum Capacitors
- Brief Description
- CAP ALUM 560UF 20% 180V SNAP
- Datasheet Download
- 380LX561M180J022.pdf
Availability of 380LX561M180J022
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 1.98880
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of 380LX561M180J022, we specialize in Cornell Dubilier Electronics all series electronic components. 380LX561M180J022 can be shipped within 24 hours after order. If you have any demands for 380LX561M180J022, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- 380LX561M180J022 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
380LX561M180J022
| Internal Part Number | EIS-380LX561M180J022 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 400 | |
| Category | Capacitors | |
| Family | Aluminum Capacitors | |
| Series | 380LX | |
| Packaging | Bulk | |
| Capacitance | 560µF | |
| Tolerance | ±20% | |
| Voltage Rating | 180V | |
| ESR (Equivalent Series Resistance) | 355 mOhm | |
| Lifetime @ Temp. | 3000 Hrs @ 85°C | |
| Operating Temperature | -40°C ~ 85°C | |
| Type | - | |
| Applications | General Purpose | |
| Ripple Current | 2.3A | |
| Impedance | - | |
| Lead Spacing | 0.394" (10.00mm) | |
| Size / Dimension | 0.984" Dia (25.00mm) | |
| Height - Seated (Max) | 1.260" (32.00mm) | |
| Surface Mount Land Size | - | |
| Mounting Type | Through Hole | |
| Package / Case | Radial, Can - Snap-In | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | 380LX561M180J022 | |
| Related Links | 380LX561, 380LX561M180J022 Datasheet, Cornell Dubilier Electronics Distributor | |
380LX561M180J022 Details Description
