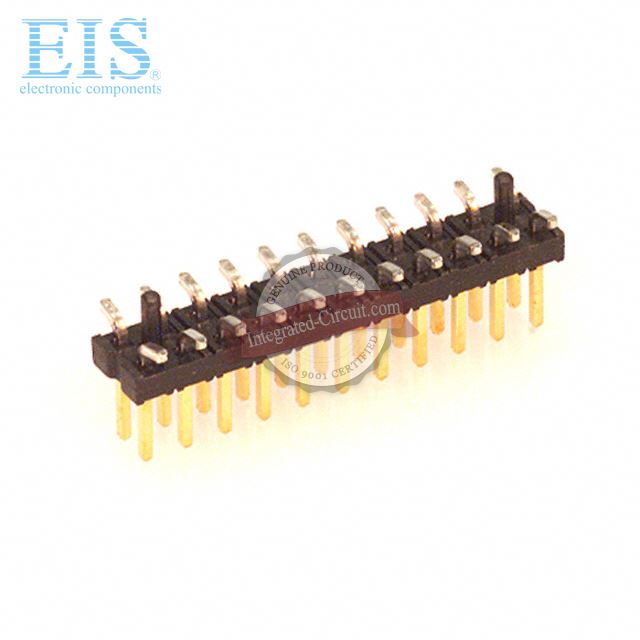

TE Connectivity AMP Connectors 4-826632-5
- Mfg. Part Number
- 4-826632-5
- Manufacturer
- TE Connectivity AMP Connectors
- Product Category
- Rectangular Connectors - Headers, Male Pins
- Brief Description
- CONN HEADER BRKWY 90POS STR GOLD
- Datasheet Download
- 4-826632-5.pdf
Availability of 4-826632-5
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of 4-826632-5, we specialize in TE Connectivity AMP Connectors all series electronic components. 4-826632-5 can be shipped within 24 hours after order. If you have any demands for 4-826632-5, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- 4-826632-5 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
4-826632-5
| Internal Part Number | EIS-4-826632-5 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 4-826632-5 Statement of ComplianceRoHS 2 Statement | |
| Standard Package | 150 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Series | AMPMODU Mod II | |
| Packaging | Bulk | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded, Breakaway | |
| Number of Positions | 90 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.264" (6.70mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Color | Green | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | 4-826632-5 | |
| Related Links | 4-826, 4-826632-5 Datasheet, TE Connectivity AMP Connectors Distributor | |
4-826632-5 Details Description
