Visual Communications Company, LLC 5684F1_1_1_1
- Mfg. Part Number
- 5684F1_1_1_1
- Manufacturer
- Visual Communications Company, LLC
- Product Category
- LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
- Brief Description

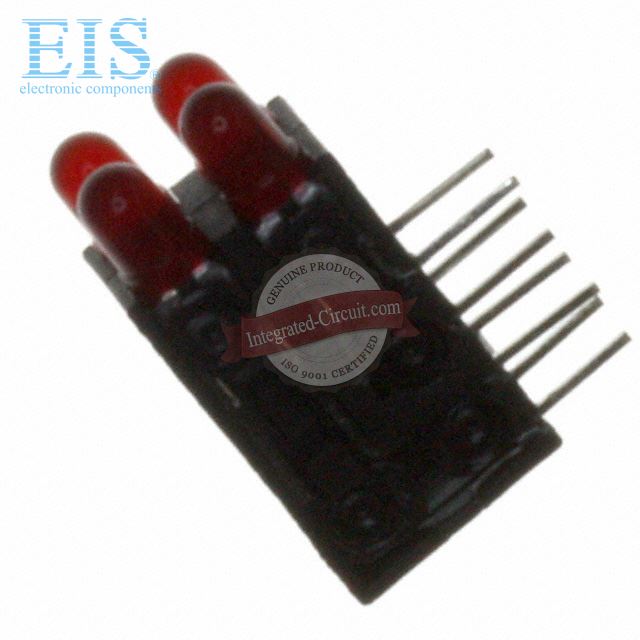

- LED RED QUAD 2X2 T1 PCB
- Datasheet Download
- 5684F1_1_1_1.pdf
Availability of 5684F1_1_1_1
Available Quantity
6141 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 2.04000
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of 5684F1_1_1_1, we specialize in Visual Communications Company, LLC all series electronic components. 5684F1_1_1_1 can be shipped within 24 hours after order. If you have any demands for 5684F1_1_1_1, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- 5684F1_1_1_1 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
5684F1_1_1_1
| Internal Part Number | EIS-5684F1_1_1_1 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 100 | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Series | 5684F | |
| Packaging | Bulk | |
| Color | Red (x 4) | |
| Wavelength - Peak | 635nm | |
| Configuration | 2 High x 2 Wide | |
| Current | 10mA | |
| Millicandela Rating | 10mcd | |
| Viewing Angle | - | |
| Lens Type | Tinted | |
| Lens Style/Size | Round with Domed Top, 3mm | |
| Voltage Rating | 2.2V | |
| Mounting Type | Through Hole, Right Angle | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | 5684F1_1_1_1 | |
| Related Links | 5684F1, 5684F1_1_1_1 Datasheet, Visual Communications Company, LLC Distributor | |
5684F1_1_1_1 Details Description
