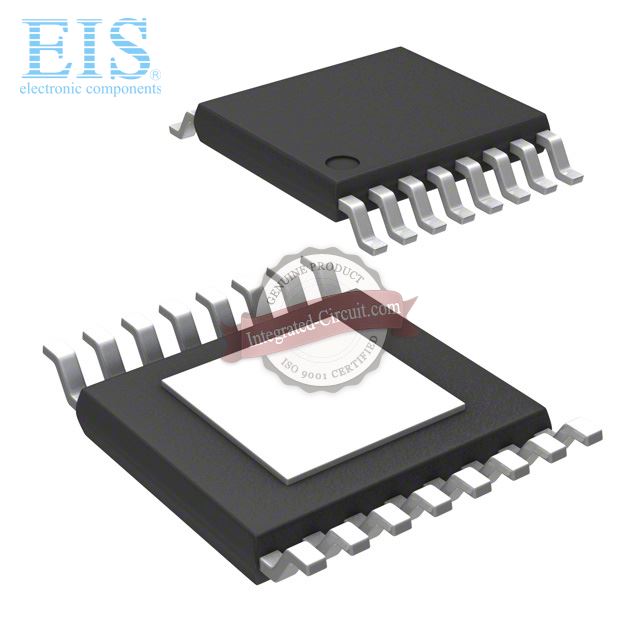

Allegro MicroSystems, LLC A6278ELPTR-T
- Mfg. Part Number
- A6278ELPTR-T
- Manufacturer
- Allegro MicroSystems, LLC
- Product Category
- PMIC - LED Drivers
- Brief Description
- IC LED Driver Linear 75.5mA 16-TSSOP-EP
- Datasheet Download
- A6278ELPTR-T.pdf
Availability of A6278ELPTR-T
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of A6278ELPTR-T, we specialize in Allegro MicroSystems, LLC all series electronic components. A6278ELPTR-T can be shipped within 24 hours after order. If you have any demands for A6278ELPTR-T, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- A6278ELPTR-T Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
A6278ELPTR-T
| Internal Part Number | EIS-A6278ELPTR-T | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Standard Package | 4,000 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Type | Linear | |
| Topology | Shift Register | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 8 | |
| Voltage - Supply (Min) | 3V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | - | |
| Current - Output / Channel | 75.5mA | |
| Frequency | 25MHz | |
| Dimming | - | |
| Applications | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 16-TSSOP-EP | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | A6278ELPTR-T | |
| Related Links | A6278E, A6278ELPTR-T Datasheet, Allegro MicroSystems, LLC Distributor | |
A6278ELPTR-T Details Description
