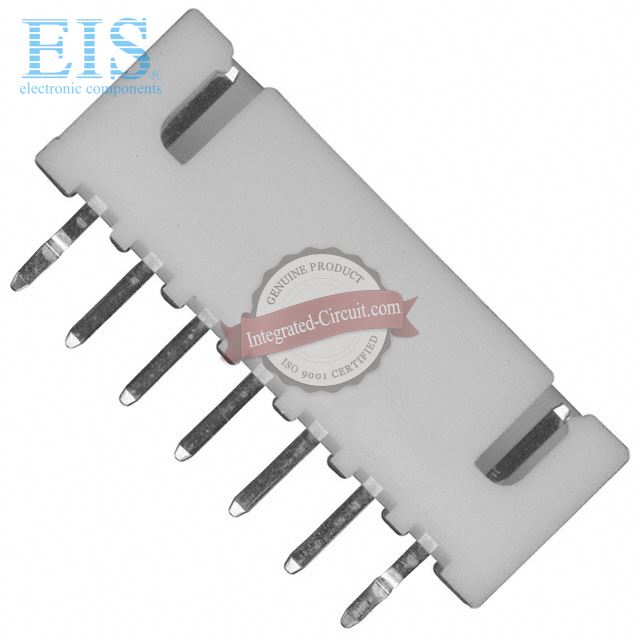

JST Sales America Inc. B7B-XH-A(LF)(SN)
(SN)(P);.jpg)
- Mfg. Part Number
- B7B-XH-A(LF)(SN)
- Manufacturer
- JST Sales America Inc.
- Product Category
- Rectangular Connectors - Headers, Male Pins
- Brief Description
- CONN HEADER XH TOP 7POS 2.5MM
- Datasheet Download
- B7B-XH-A(LF)(SN).pdf
Availability of B7B-XH-A(LF)(SN)
Available Quantity
17731 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.13411
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of B7B-XH-A(LF)(SN), we specialize in JST Sales America Inc. all series electronic components. B7B-XH-A(LF)(SN) can be shipped within 24 hours after order. If you have any demands for B7B-XH-A(LF)(SN), Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- B7B-XH-A(LF)(SN) Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
B7B-XH-A(LF)(SN)
| Internal Part Number | EIS-B7B-XH-A(LF)(SN) | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 500 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Series | XH | |
| Packaging | Bulk | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 7 | |
| Number of Positions Loaded | All | |
| Pitch | 0.098" (2.50mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Fastening Type | Detent Lock | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Natural | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | B7B-XH-A(LF)(SN) | |
| Related Links | B7B-XH-A, B7B-XH-A(LF)(SN) Datasheet, JST Sales America Inc. Distributor | |
