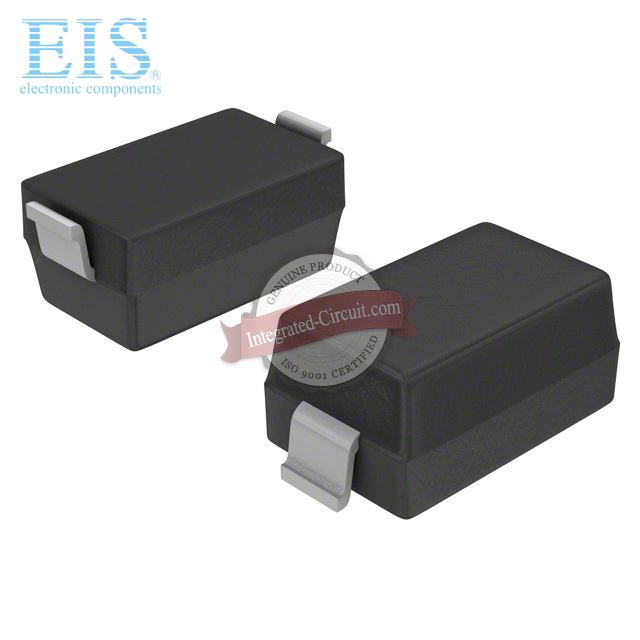

Panasonic Electronic Components DB2X20100L
- Mfg. Part Number
- DB2X20100L
- Manufacturer
- Panasonic Electronic Components
- Product Category
- Diodes, Rectifiers - Single
- Brief Description
- DIODE GEN PURP 20V 500MA SOD123
- Datasheet Download
- DB2X20100L.pdf
Availability of DB2X20100L
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.05562
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of DB2X20100L, we specialize in Panasonic Electronic Components all series electronic components. DB2X20100L can be shipped within 24 hours after order. If you have any demands for DB2X20100L, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- DB2X20100L Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
DB2X20100L
| Internal Part Number | EIS-DB2X20100L | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 3,000 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes, Rectifiers - Single | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 500mA | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 500mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 4.3ns | |
| Current - Reverse Leakage @ Vr | 10µA @ 10V | |
| Capacitance @ Vr, F | 12pF @ 10V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | SOD-123 | |
| Supplier Device Package | SOD-123 | |
| Operating Temperature - Junction | 125°C (Max) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | DB2X20100L | |
| Related Links | DB2X2, DB2X20100L Datasheet, Panasonic Electronic Components Distributor | |
DB2X20100L Details Description
