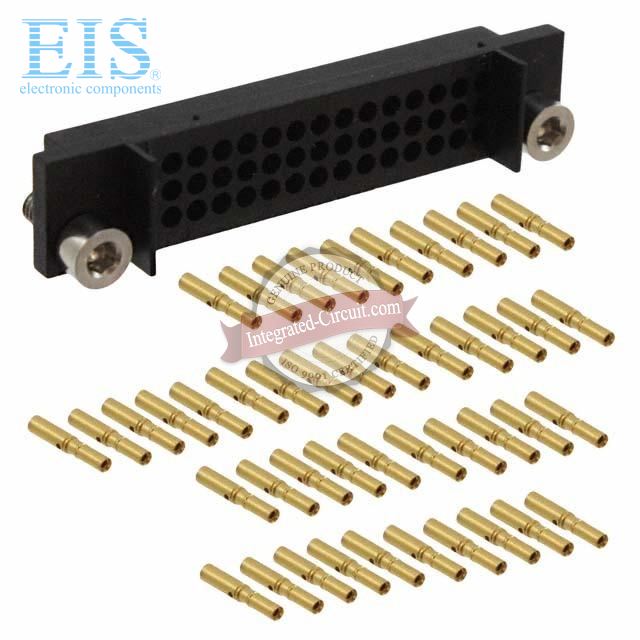

ITT Cannon, LLC DDMM36H4PJ
- Mfg. Part Number
- DDMM36H4PJ
- Manufacturer
- ITT Cannon, LLC
- Product Category
- D-Sub Connectors
- Brief Description
- D-Sub Connector Plug, Male Pins 36 (32 + 4 Power) Position Panel Mount, Through Hole, Right Angle Solder
- Datasheet Download
- DDMM36H4PJ.pdf
Availability of DDMM36H4PJ
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 57.74200
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of DDMM36H4PJ, we specialize in ITT Cannon, LLC all series electronic components. DDMM36H4PJ can be shipped within 24 hours after order. If you have any demands for DDMM36H4PJ, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- DDMM36H4PJ Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
DDMM36H4PJ
| Internal Part Number | EIS-DDMM36H4PJ | |
| Lead Free Status / RoHS Status | Vendor undefined / RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Series | MIL-DTL-24308, Combo D®, D*MM | |
| Packaging | Bulk | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 36 (32 + 4 Power) | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 5 (DD, D) - 36W4 | |
| Contact Type | Signal and Power | |
| Mounting Type | Panel Mount, Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder | |
| Features | Shielded | |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 150°C | |
| Voltage Rating | - | |
| Current Rating | 40A, 7.5A | |
| Housing Material | Polyester | |
| Color | Black | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | DDMM36H4PJ | |
| Related Links | DDMM3, DDMM36H4PJ Datasheet, ITT Cannon, LLC Distributor | |
DDMM36H4PJ Details Description
