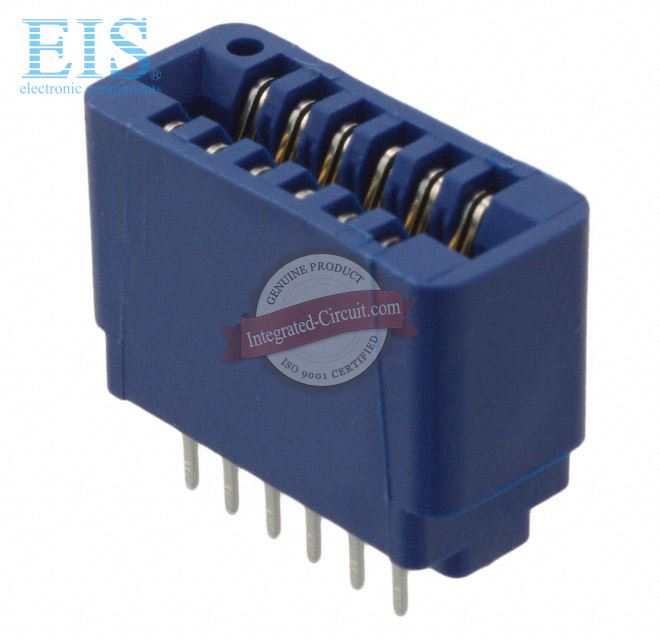

Sullins Connector Solutions EBA32DCWD-S288
- Mfg. Part Number
- EBA32DCWD-S288
- Manufacturer
- Sullins Connector Solutions
- Product Category
- Card Edge Connectors - Edgeboard Connectors
- Brief Description
- CONN EDGECARD 64POS .125"
- Datasheet Download
- EBA32DCWD-S288.pdf
Availability of EBA32DCWD-S288
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 8.73200
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of EBA32DCWD-S288, we specialize in Sullins Connector Solutions all series electronic components. EBA32DCWD-S288 can be shipped within 24 hours after order. If you have any demands for EBA32DCWD-S288, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- EBA32DCWD-S288 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
EBA32DCWD-S288
| Internal Part Number | EIS-EBA32DCWD-S288 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Series | - | |
| Packaging | Tray | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | 32 | |
| Number of Positions | 64 | |
| Card Thickness | 0.062" (1.57mm) | |
| Number of Rows | 2 | |
| Pitch | 0.125" (3.18mm) | |
| Features | Card Extender | |
| Mounting Type | Board Edge, Straddle Mount | |
| Termination | Solder | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Contact Type | Hairpin Bellows | |
| Color | - | |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia | |
| Operating Temperature | -65°C ~ 125°C | |
| Material - Insulation | Polybutylene Terephthalate (PBT) | |
| Read Out | Dual | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | EBA32DCWD-S288 | |
| Related Links | EBA32DC, EBA32DCWD-S288 Datasheet, Sullins Connector Solutions Distributor | |
EBA32DCWD-S288 Details Description
