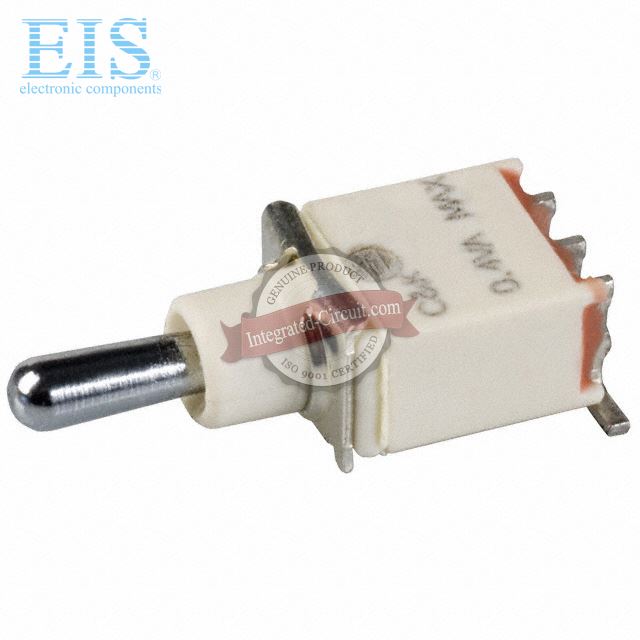

C&K Components ET03MD1SAPE
,-ET01MD1SAKE(T&R),-ET03MD1SAKE(T&R).jpg)
- Mfg. Part Number
- ET03MD1SAPE
- Manufacturer
- C&K Components
- Product Category
- Toggle Switches
- Brief Description
- SWITCH TOGGLE SPDT 0.4VA 20V
- Datasheet Download
- ET03MD1SAPE.pdf
Availability of ET03MD1SAPE
Available Quantity
5620 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 3.71930
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of ET03MD1SAPE, we specialize in C&K Components all series electronic components. ET03MD1SAPE can be shipped within 24 hours after order. If you have any demands for ET03MD1SAPE, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- ET03MD1SAPE Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
ET03MD1SAPE
| Internal Part Number | EIS-ET03MD1SAPE | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sealed Switch – Part 1 Sealed Switch – Part 2 Sealed Switch – Part 3 Sealed Switch – Part 4 Introduction to Electromechanical Switches | |
| PCN Design/Specification | ET Series Material 25/Jun/2010 | |
| Standard Package | 600 | |
| Category | Switches | |
| Family | Toggle Switches | |
| Series | ET | |
| Packaging | Tape & Reel (TR) | |
| Circuit | SPDT | |
| Switch Function | On-Off-On | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Standard Round | |
| Actuator Length | 6.10mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Panel Cutout Dimensions | - | |
| Bushing Thread | Unthreaded | |
| Ingress Protection | IP57 - Dust Protected, Waterproof | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Brass, Chrome Plated | |
| Electrical Life | 30,000 Cycles | |
| Operating Temperature | -30°C ~ 85°C | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | ET03MD1SAPE | |
| Related Links | ET03M, ET03MD1SAPE Datasheet, C&K Components Distributor | |
