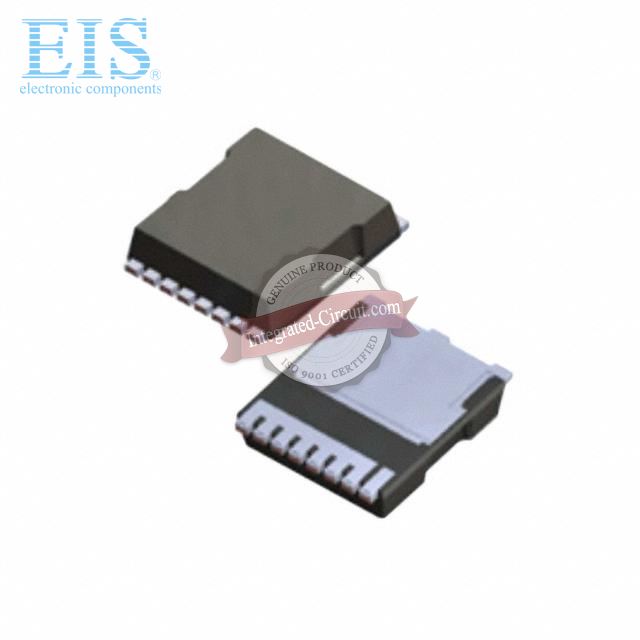

Fairchild Semiconductor FDBL0120N40
- Mfg. Part Number
- FDBL0120N40
- Manufacturer
- Fairchild Semiconductor
- Product Category
- FETs - Single
- Brief Description
- MOSFET N-CH 40V 240A H-PSOF8
- Datasheet Download
- FDBL0120N40.pdf
Availability of FDBL0120N40
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 1.63560
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of FDBL0120N40, we specialize in Fairchild Semiconductor all series electronic components. FDBL0120N40 can be shipped within 24 hours after order. If you have any demands for FDBL0120N40, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- FDBL0120N40 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
FDBL0120N40
| Internal Part Number | EIS-FDBL0120N40 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Extended Temperature Family of Mid-voltage MOSFETs | |
| Standard Package | 2,000 | |
| Category | Discrete Semiconductor Products | |
| Family | FETs - Single | |
| Series | PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 40V | |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) | |
| Rds On (Max) @ Id, Vgs | 1.2 mOhm @ 80A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 107nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 7735pF @ 25V | |
| Power - Max | 300W | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerSFN | |
| Supplier Device Package | 8-PSOF | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | FDBL0120N40 | |
| Related Links | FDBL0, FDBL0120N40 Datasheet, Fairchild Semiconductor Distributor | |
