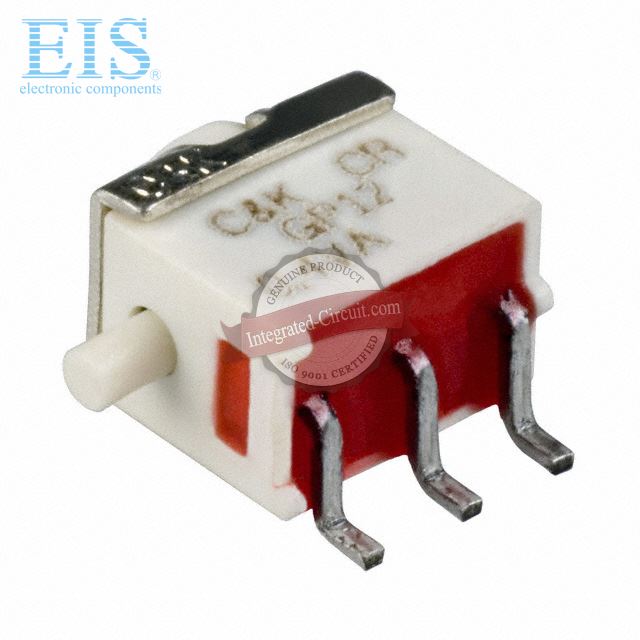

C&K Components GP12MSABE(T&R)
.jpg)
- Mfg. Part Number
- GP12MSABE(T&R)
- Manufacturer
- C&K Components
- Product Category
- Pushbutton Switches
- Brief Description
- SWITCH PUSH SPDT 0.4VA 20V
- Datasheet Download
- GP12MSABE(T&R).pdf
Availability of GP12MSABE(T&R)
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 4.65000
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of GP12MSABE(T&R), we specialize in C&K Components all series electronic components. GP12MSABE(T&R) can be shipped within 24 hours after order. If you have any demands for GP12MSABE(T&R), Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- GP12MSABE(T&R) Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
GP12MSABE(T&R)
| Internal Part Number | EIS-GP12MSABE(T&R) | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sealed Switch – Part 1 Sealed Switch – Part 2 Sealed Switch – Part 3 Sealed Switch – Part 4 | |
| PCN Design/Specification | Red to White Epoxy 29/June/2009 | |
| Standard Package | 600 | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Series | GP | |
| Packaging | Tape & Reel (TR) | |
| Type | Standard | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Round, Plunger | |
| Color - Actuator/Cap | White | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Ingress Protection | IP57 - Dust Protected, Waterproof | |
| Features | Epoxy Sealed Terminals | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | 40,000 Cycles | |
| Electrical Life | 40,000 Cycles | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | GP12MSABE(T&R) | |
| Related Links | GP12MSA, GP12MSABE(T&R) Datasheet, C&K Components Distributor | |
