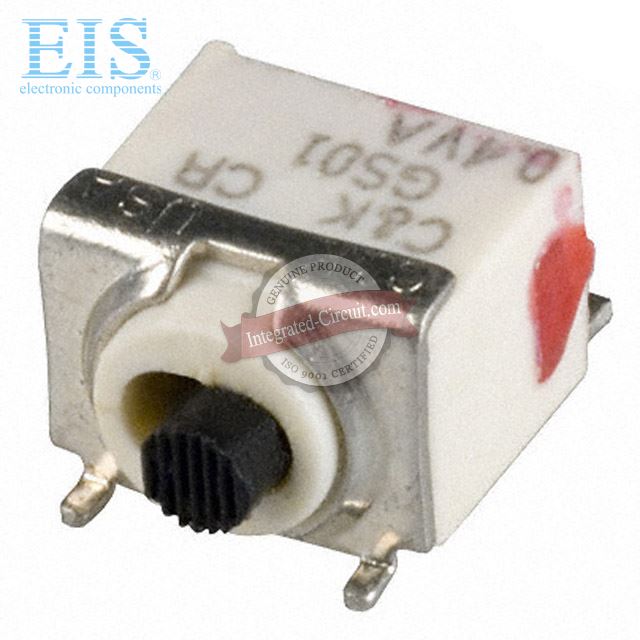

C&K Components GS01MSABE
.jpg)
- Mfg. Part Number
- GS01MSABE
- Manufacturer
- C&K Components
- Product Category
- Slide Switches
- Brief Description
- SWITCH SLIDE SPDT 0.4VA 20V
- Datasheet Download
- GS01MSABE.pdf
Availability of GS01MSABE
Available Quantity
6220 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 3.17205
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of GS01MSABE, we specialize in C&K Components all series electronic components. GS01MSABE can be shipped within 24 hours after order. If you have any demands for GS01MSABE, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- GS01MSABE Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
GS01MSABE
| Internal Part Number | EIS-GS01MSABE | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| PCN Design/Specification | Red to White Epoxy 29/June/2009 | |
| PCN Assembly/Origin | Series Transfer 26/Nov/2012 | |
| Standard Package | 600 | |
| Category | Switches | |
| Family | Slide Switches | |
| Series | GS | |
| Packaging | Tape & Reel (TR) | |
| Circuit | SPDT | |
| Contact Timing | Not Specified | |
| Switch Function | On-On | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Standard | |
| Actuator Length | 1.27mm | |
| Contact Material | Copper | |
| Contact Finish | Gold | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Polyetherimide (PEI) | |
| Switch Travel | 1.27mm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 40,000 Cycles | |
| Electrical Life | 40,000 Cycles | |
| Operating Force | - | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | GS01MSABE | |
| Related Links | GS01, GS01MSABE Datasheet, C&K Components Distributor | |
