Renesas Electronics America HAT2172N
- Mfg. Part Number
- HAT2172N
- Manufacturer
- Renesas Electronics America
- Product Category
- FETs - Single
- Brief Description
- MOSFET N-CH 40V 30A LFPAK-I
- Datasheet Download
- HAT2172N.pdf
Availability of HAT2172N
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of HAT2172N, we specialize in Renesas Electronics America all series electronic components. HAT2172N can be shipped within 24 hours after order. If you have any demands for HAT2172N, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- HAT2172N Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
HAT2172N
| Internal Part Number | EIS-HAT2172N | |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 2,500 | |
| Category | Discrete Semiconductor Products | |
| Family | FETs - Single | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 40V | |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta) | |
| Rds On (Max) @ Id, Vgs | 7.8 mOhm @ 15A, 10V | |
| Vgs(th) (Max) @ Id | - | |
| Gate Charge (Qg) @ Vgs | 32nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2420pF @ 10V | |
| Power - Max | 20W | |
| Mounting Type | Surface Mount | |

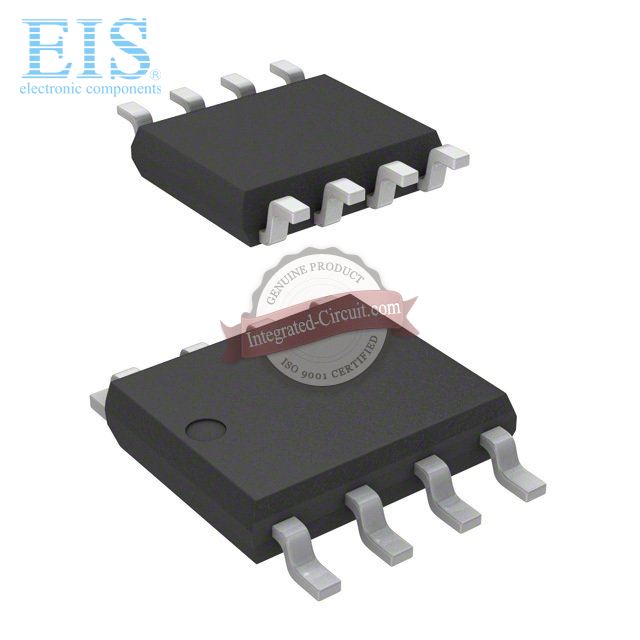

| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) | |
| Supplier Device Package | 8-LFPAK-iV | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | HAT2172N | |
| Related Links | HAT2, HAT2172N Datasheet, Renesas Electronics America Distributor | |
HAT2172N Details Description
