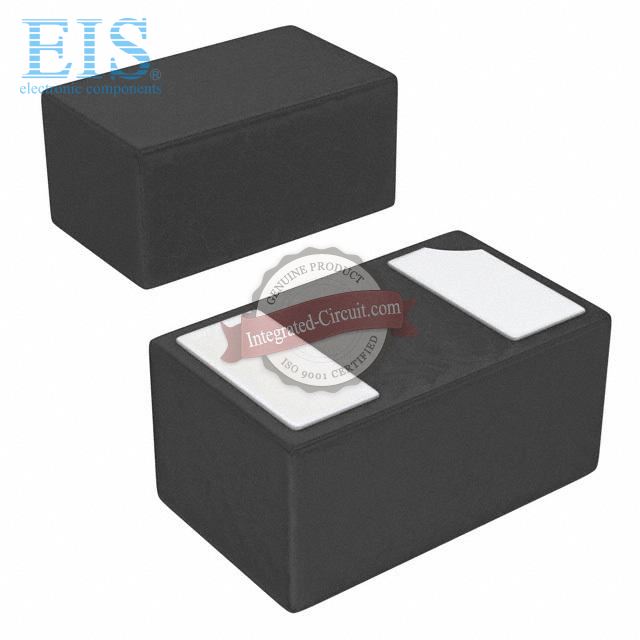

TDK Corporation MLG0603SR13HTD25
- Mfg. Part Number
- MLG0603SR13HTD25
- Manufacturer
- TDK Corporation
- Product Category
- Fixed Inductors
- Brief Description
- FIXED IND 130NH 50MA 7.3 OHM SMD
- Datasheet Download
- MLG0603SR13HTD25.pdf
Availability of MLG0603SR13HTD25
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.03968
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of MLG0603SR13HTD25, we specialize in TDK Corporation all series electronic components. MLG0603SR13HTD25 can be shipped within 24 hours after order. If you have any demands for MLG0603SR13HTD25, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- MLG0603SR13HTD25 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
MLG0603SR13HTD25
| Internal Part Number | EIS-MLG0603SR13HTD25 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SMD Inductors High Frequency Inductor Family | |
| Other Drawings | 0603 (0201) Footprint | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Standard Package | 15,000 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Series | Automotive, AEC-Q200, MLG | |
| Packaging | Tape & Reel (TR) | |
| Type | Multilayer | |
| Material - Core | Non-Magnetic | |
| Inductance | 130nH | |
| Tolerance | ±3% | |
| Current Rating | 50mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 7.3 Ohm Max | |
| Q @ Freq | 5 @ 100MHz | |
| Frequency - Self Resonant | 670MHz | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 100MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0201 (0603 Metric) | |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | |
| Height - Seated (Max) | 0.013" (0.33mm) | |
| Supplier Device Package | 0201 (0603 Metric) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | MLG0603SR13HTD25 | |
| Related Links | MLG0603S, MLG0603SR13HTD25 Datasheet, TDK Corporation Distributor | |
MLG0603SR13HTD25 Details Description
