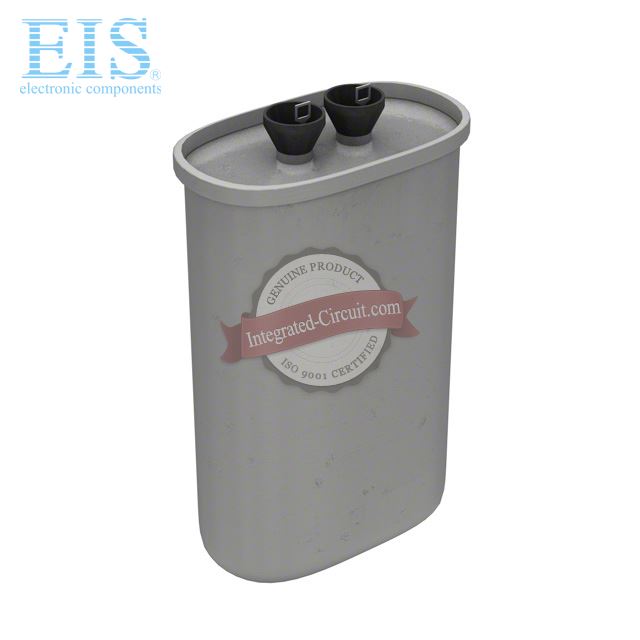

Cornell Dubilier Electronics OTBH106KNPIR-F
- Mfg. Part Number
- OTBH106KNPIR-F
- Manufacturer
- Cornell Dubilier Electronics
- Product Category
- Film Capacitors
- Brief Description
- CAP FILM 10UF 10% 1.5KVDC QC
- Datasheet Download
- OTBH106KNPIR-F.pdf
Availability of OTBH106KNPIR-F
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 49.95900
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of OTBH106KNPIR-F, we specialize in Cornell Dubilier Electronics all series electronic components. OTBH106KNPIR-F can be shipped within 24 hours after order. If you have any demands for OTBH106KNPIR-F, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- OTBH106KNPIR-F Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
OTBH106KNPIR-F
| Internal Part Number | EIS-OTBH106KNPIR-F | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 100 | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Series | OTB | |
| Packaging | Bulk | |
| Capacitance | 10µF | |
| Tolerance | ±10% | |
| Voltage Rating - AC | 660V | |
| Voltage Rating - DC | 1500V (1.5kV) | |
| Dielectric Material | Paper, Metallized | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -55°C ~ 85°C | |
| Mounting Type | Chassis Mount | |
| Package / Case | Radial, Can | |
| Size / Dimension | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | |
| Height - Seated (Max) | 5.370" (136.40mm) | |
| Termination | Quick Connect, Disconnect | |
| Lead Spacing | 0.810" (20.57mm) | |
| Applications | Motor Run | |
| Features | - | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | OTBH106KNPIR-F | |
| Related Links | OTBH106, OTBH106KNPIR-F Datasheet, Cornell Dubilier Electronics Distributor | |
