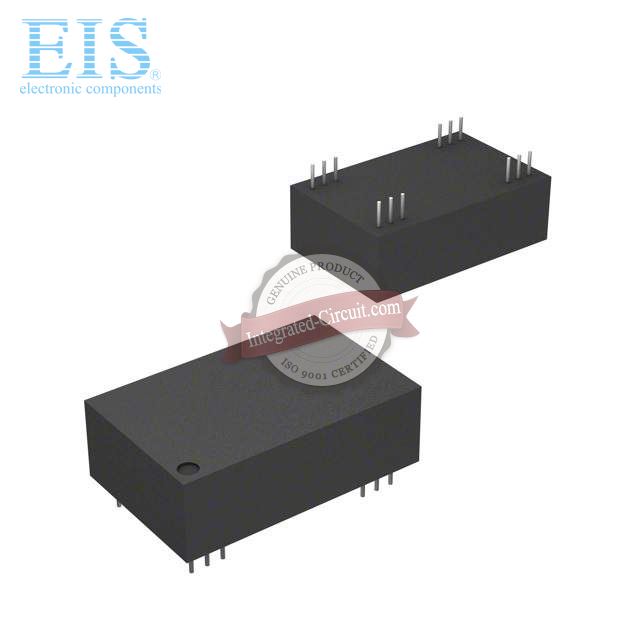

Recom Power REC3-2409DRW/H/B/M
.jpg)
- Mfg. Part Number
- REC3-2409DRW/H/B/M
- Manufacturer
- Recom Power
- Product Category
- DC DC Converters
- Brief Description
- CONV DC/DC 3W 18-36VIN +/-09VOUT
- Datasheet Download
- REC3-2409DRW/H/B/M.pdf
Availability of REC3-2409DRW/H/B/M
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 19.20000
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of REC3-2409DRW/H/B/M, we specialize in Recom Power all series electronic components. REC3-2409DRW/H/B/M can be shipped within 24 hours after order. If you have any demands for REC3-2409DRW/H/B/M, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- REC3-2409DRW/H/B/M Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
REC3-2409DRW/H/B/M
| Internal Part Number | EIS-REC3-2409DRW/H/B/M | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 15 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Series | ECONOLINE REC3-DRW | |
| Packaging | Tube | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 9V | |
| Voltage - Output 2 | -9V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 165mA, 165mA | |
| Power (Watts) - Manufacture Series | 3W | |
| Voltage - Isolation | 1.6kV (1600V) | |
| Features | SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 24-DIP Module (12 Leads) | |
| Size / Dimension | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 83% | |
| Power (Watts) - Max | 3W | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | REC3-2409DRW/H/B/M | |
| Related Links | REC3-2409, REC3-2409DRW/H/B/M Datasheet, Recom Power Distributor | |
