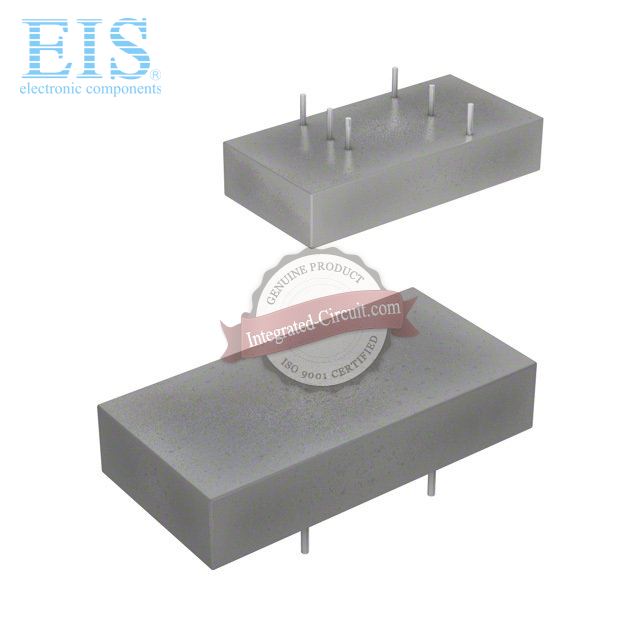

Recom Power RP20-2415DF/N-HC
- Mfg. Part Number
- RP20-2415DF/N-HC
- Manufacturer
- Recom Power
- Product Category
- DC DC Converters
- Brief Description
- CONV DC/DC 20W 18-36VIN +/-15V
- Datasheet Download
- RP20-2415DF/N-HC.pdf
Availability of RP20-2415DF/N-HC
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 67.35778
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of RP20-2415DF/N-HC, we specialize in Recom Power all series electronic components. RP20-2415DF/N-HC can be shipped within 24 hours after order. If you have any demands for RP20-2415DF/N-HC, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- RP20-2415DF/N-HC Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
RP20-2415DF/N-HC
| Internal Part Number | EIS-RP20-2415DF/N-HC | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 9 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Series | POWERLINE RP20-F | |
| Packaging | Tube | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 18V | |
| Voltage - Input (Max) | 36V | |
| Voltage - Output 1 | 15V | |
| Voltage - Output 2 | -15V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 667mA, 667mA | |
| Power (Watts) - Manufacture Series | 20W | |
| Voltage - Isolation | 1.6kV (1600V) | |
| Features | Remote On/Off, OCP, OVP, SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP Module | |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 87% | |
| Power (Watts) - Max | 20W | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | RP20-2415DF/N-HC | |
| Related Links | RP20-241, RP20-2415DF/N-HC Datasheet, Recom Power Distributor | |
RP20-2415DF/N-HC Details Description
