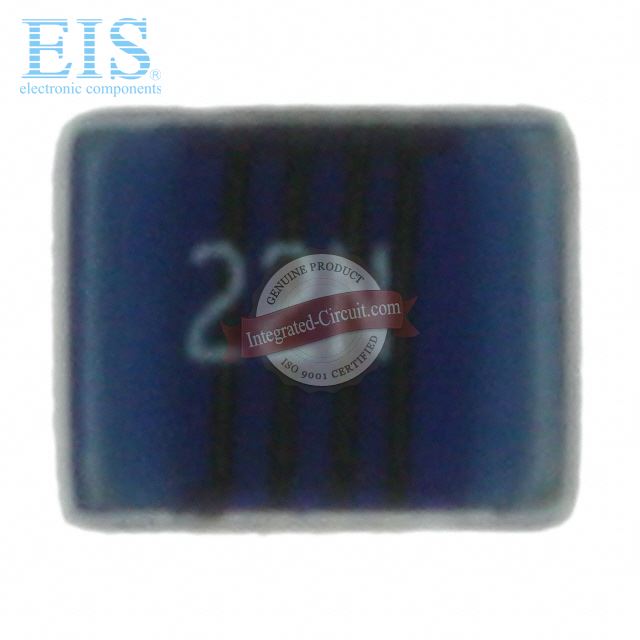

Bel Fuse Inc. SC104B-560
- Mfg. Part Number
- SC104B-560
- Manufacturer
- Bel Fuse Inc.
- Product Category
- Fixed Inductors
- Brief Description
- FIXED IND 56UH 1.55A 220 MOHM
- Datasheet Download
- SC104B-560.pdf
Availability of SC104B-560
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.51912
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of SC104B-560, we specialize in Bel Fuse Inc. all series electronic components. SC104B-560 can be shipped within 24 hours after order. If you have any demands for SC104B-560, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- SC104B-560 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
SC104B-560
| Internal Part Number | EIS-SC104B-560 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |
| Featured Product | SC Series SMD Power Inductors | |
| Standard Package | 500 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Series | SC104B | |
| Packaging | Tape & Reel (TR) | |
| Type | - | |
| Material - Core | - | |
| Inductance | 56µH | |
| Tolerance | ±20% | |
| Current Rating | 1.55A | |
| Current - Saturation | 1.01A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 220 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Operating Temperature | - | |
| Frequency - Test | 2.52MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.429" L x 0.386" W (10.90mm x 9.80mm) | |
| Height - Seated (Max) | 0.189" (4.80mm) | |
| Supplier Device Package | - | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SC104B-560 | |
| Related Links | SC104, SC104B-560 Datasheet, Bel Fuse Inc. Distributor | |
