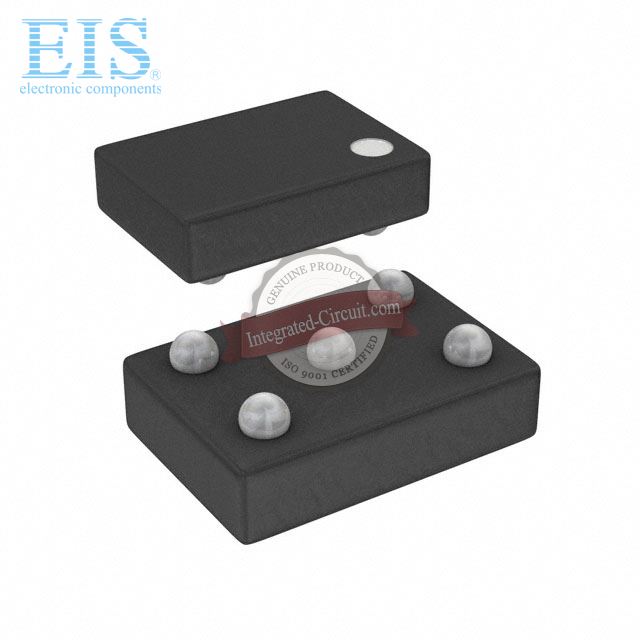

SiTIME SIT9002AC-23H25EQ
- Mfg. Part Number
- SIT9002AC-23H25EQ
- Manufacturer
- SiTIME
- Product Category
- Programmable Oscillators
- Brief Description
- OSC MEMS PROG
- Datasheet Download
- SIT9002AC-23H25EQ.pdf
Availability of SIT9002AC-23H25EQ
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 10.81100
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of SIT9002AC-23H25EQ, we specialize in SiTIME all series electronic components. SIT9002AC-23H25EQ can be shipped within 24 hours after order. If you have any demands for SIT9002AC-23H25EQ, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- SIT9002AC-23H25EQ Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
SIT9002AC-23H25EQ
| Internal Part Number | EIS-SIT9002AC-23H25EQ | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Series | SiT9002 | |
| Packaging | Bulk | |
| Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
| Available Frequency Range | 1MHz ~ 220MHz | |
| Function | Enable/Disable | |
| Output | LVDS | |
| Voltage - Supply | 2.5V | |
| Frequency Stability | ±25ppm | |
| Operating Temperature | -20°C ~ 70°C | |
| Spread Spectrum Bandwidth | -1.00%, Down Spread | |
| Current - Supply (Max) | 77mA | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, No Lead (DFN, LCC) | |
| Height | 0.031" (0.80mm) | |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | |
| Current - Supply (Disable) (Max) | 10µA | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SIT9002AC-23H25EQ | |
| Related Links | SIT9002A, SIT9002AC-23H25EQ Datasheet, SiTIME Distributor | |
SIT9002AC-23H25EQ Details Description
