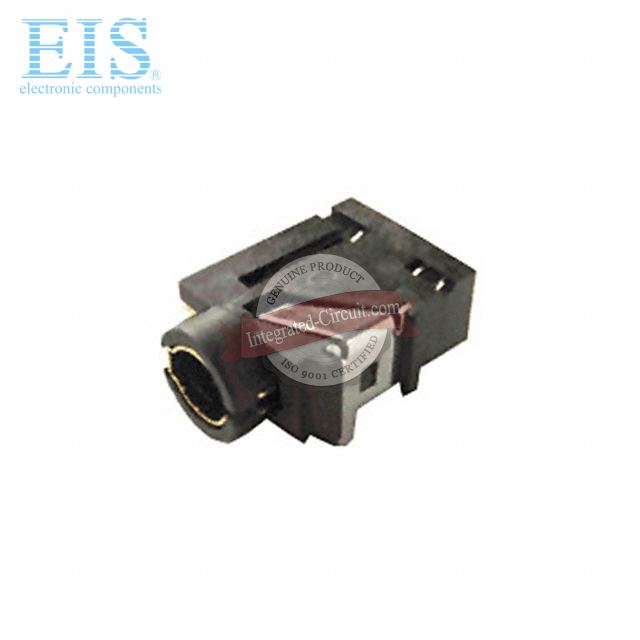

CUI Inc. SJ-43514
- Mfg. Part Number
- SJ-43514
- Manufacturer
- CUI Inc.
- Product Category
- Barrel - Audio Connectors
- Brief Description
- CONN 3.5MM AUDIO JACK 4 COND PCB
- Datasheet Download
- SJ-43514.pdf
Availability of SJ-43514
Available Quantity
56858 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.48412
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of SJ-43514, we specialize in CUI Inc. all series electronic components. SJ-43514 can be shipped within 24 hours after order. If you have any demands for SJ-43514, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- SJ-43514 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
SJ-43514
| Internal Part Number | EIS-SJ-43514 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | SJ-4351x(TS) Cert of Compliance | |
| 3D Model | SJ-43514 | |
| Standard Package | 270 | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Audio Connectors | |
| Series | - | |
| Packaging | Bulk | |
| Connector Type | Phone Jack | |
| Gender | Female | |
| Signal Lines | Multiple | |
| Plug/Mating Plug Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | |
| Number of Positions/Contacts | 4 Conductors, 4 Contacts | |
| Internal Switch(s) | Does Not Contain Switch | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | - | |
| Color - Contact | Black | |
| Contact Material | Copper Alloy | |
| Contact Material - Plating | Silver | |
| Housing Material | Plastic | |
| Housing Color | Black | |
| Operating Temperature | -20°C ~ 85°C | |
| Voltage - Rated | 12VDC | |
| Current Rating | 1A | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SJ-43514 | |
| Related Links | SJ-4, SJ-43514 Datasheet, CUI Inc. Distributor | |
