CEL (California Eastern Laboratories) THL3502
- Mfg. Part Number
- THL3502
- Manufacturer
- CEL (California Eastern Laboratories)
- Product Category
- PMIC - LED Drivers
- Brief Description
- IC LED DRIVER 100MA 48QFN
- Datasheet Download
- THL3502.pdf
Availability of THL3502
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 3.58800
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of THL3502, we specialize in CEL (California Eastern Laboratories) all series electronic components. THL3502 can be shipped within 24 hours after order. If you have any demands for THL3502, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- THL3502 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
THL3502
| Internal Part Number | EIS-THL3502 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Application Amusement Solution | |
| Design Resources | Lighting Product Selector | |
| Standard Package | 2,600 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Series | THine® | |
| Packaging | Tape & Reel (TR) | |
| Type | Power Switch | |
| Topology | - | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 24 | |
| Voltage - Supply (Min) | 3V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 35V | |
| Current - Output / Channel | 100mA | |
| Frequency | 10MHz | |
| Dimming | - | |
| Applications | Backlight, Signage | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

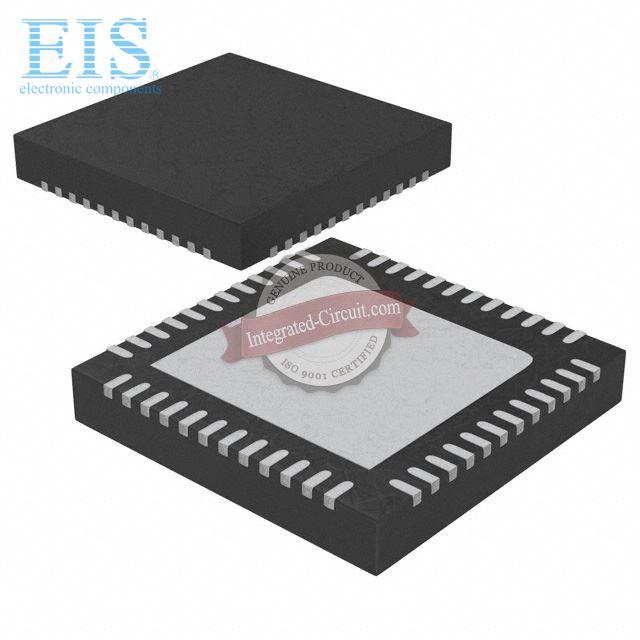

| Package / Case | 48-VFQFN Exposed Pad | |
| Supplier Device Package | 48-QFN (7x7) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | THL3502 | |
| Related Links | THL, THL3502 Datasheet, CEL (California Eastern Laboratories) Distributor | |
