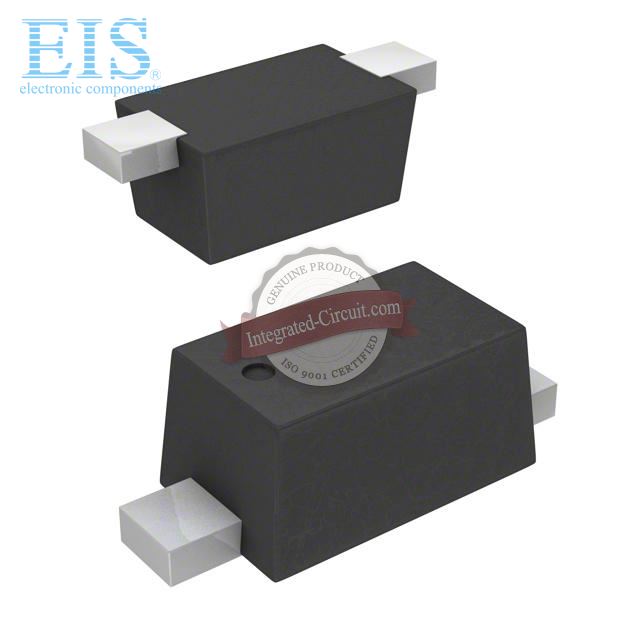

API Delevan 160-561FS
- Mfg. Part Number
- 160-561FS
- Manufacturer
- API Delevan
- Product Category
- Fixed Inductors
- Brief Description
- FIXED IND 560NH 795MA 200 MOHM
- Datasheet Download
- 160-561FS.pdf
Availability of 160-561FS
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 50.38040
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of 160-561FS, we specialize in API Delevan all series electronic components. 160-561FS can be shipped within 24 hours after order. If you have any demands for 160-561FS, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- 160-561FS Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
160-561FS
| Internal Part Number | EIS-160-561FS | |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 50 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Series | 160 | |
| Packaging | Bulk | |
| Type | - | |
| Material - Core | Iron | |
| Inductance | 560nH | |
| Tolerance | ±1% | |
| Current Rating | 795mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 200 mOhm Max | |
| Q @ Freq | 50 @ 25MHz | |
| Frequency - Self Resonant | 180MHz | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 25MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD | |
| Size / Dimension | 0.150" L x 0.120" W (3.81mm x 3.05mm) | |
| Height - Seated (Max) | 0.080" (2.03mm) | |
| Supplier Device Package | - | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | 160-561FS | |
| Related Links | 160-, 160-561FS Datasheet, API Delevan Distributor | |
160-561FS Details Description
