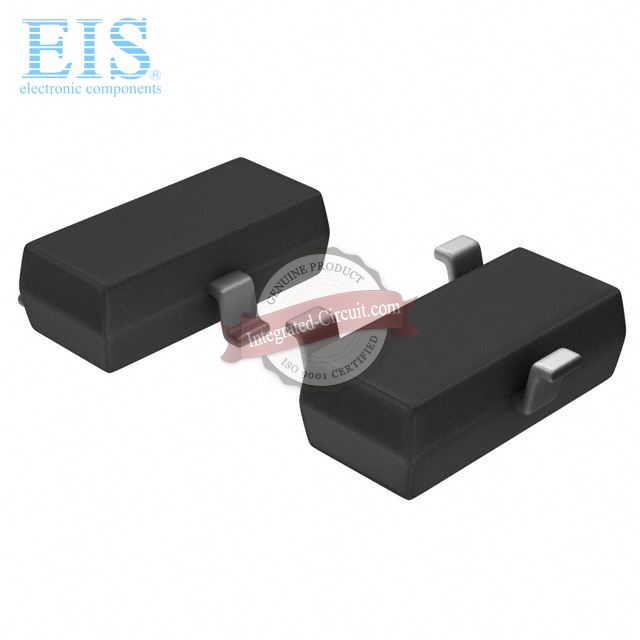

Vishay Semiconductor/Diodes Division BAS20-E3-08
- Mfg. Part Number
- BAS20-E3-08
- Manufacturer
- Vishay Semiconductor/Diodes Division
- Product Category
- Diodes, Rectifiers - Single
- Brief Description
- DIODE GEN PURP 150V 200MA SOT23
- Datasheet Download
- BAS20-E3-08.pdf
Availability of BAS20-E3-08
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.02720
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of BAS20-E3-08, we specialize in Vishay Semiconductor/Diodes Division all series electronic components. BAS20-E3-08 can be shipped within 24 hours after order. If you have any demands for BAS20-E3-08, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- BAS20-E3-08 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
BAS20-E3-08
| Internal Part Number | EIS-BAS20-E3-08 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 3,000 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes, Rectifiers - Single | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 150V | |
| Current - Average Rectified (Io) | 200mA | |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 200mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 50ns | |
| Current - Reverse Leakage @ Vr | 100nA @ 150V | |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Supplier Device Package | SOT-23 | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | BAS20-E3-08 | |
| Related Links | BAS20, BAS20-E3-08 Datasheet, Vishay Semiconductor/Diodes Division Distributor | |
BAS20-E3-08 Details Description
