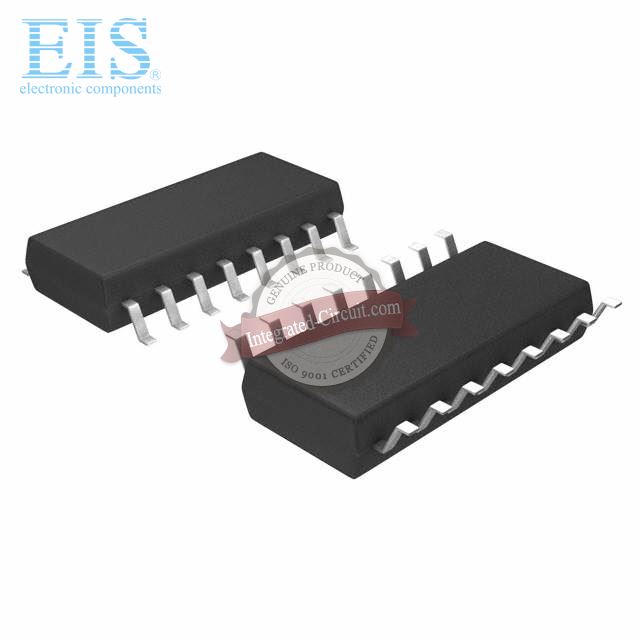

Texas Instruments CD40175BNSR
- Mfg. Part Number
- CD40175BNSR
- Manufacturer
- Texas Instruments
- Product Category
- Logic - Flip Flops
- Brief Description
- IC D-TYPE POS TRG SNGL 16SO
- Datasheet Download
- CD40175BNSR.pdf
Availability of CD40175BNSR
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.14000
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of CD40175BNSR, we specialize in Texas Instruments all series electronic components. CD40175BNSR can be shipped within 24 hours after order. If you have any demands for CD40175BNSR, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- CD40175BNSR Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
CD40175BNSR
| Internal Part Number | EIS-CD40175BNSR | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Carrier Tape Update 23/Feb/2015 Carrier Tape Revision A 06/Mar/2015 Carrier Tape Revision B 30/Mar/2015 Carrier Tape Revision C 09/Apr/2015 PCN Cancelled 17/Apr/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Standard Package | 2,000 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Flip Flops | |
| Series | 4000B | |
| Packaging | Tape & Reel (TR) | |
| Function | Master Reset | |
| Type | D-Type | |
| Output Type | Differential | |
| Number of Elements | 1 | |
| Number of Bits per Element | 4 | |
| Frequency - Clock | 14MHz | |
| Max Propagation Delay @ V, Max CL | 120ns @ 15V, 50pF | |
| Trigger Type | Positive Edge | |
| Current - Output High, Low | 6.8mA, 6.8mA | |
| Voltage - Supply | 3 V ~ 18 V | |
| Current - Quiescent | 4µA | |
| Input Capacitance | 5pF | |
| Operating Temperature | -55°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | CD40175BNSR | |
| Related Links | CD401, CD40175BNSR Datasheet, Texas Instruments Distributor | |
