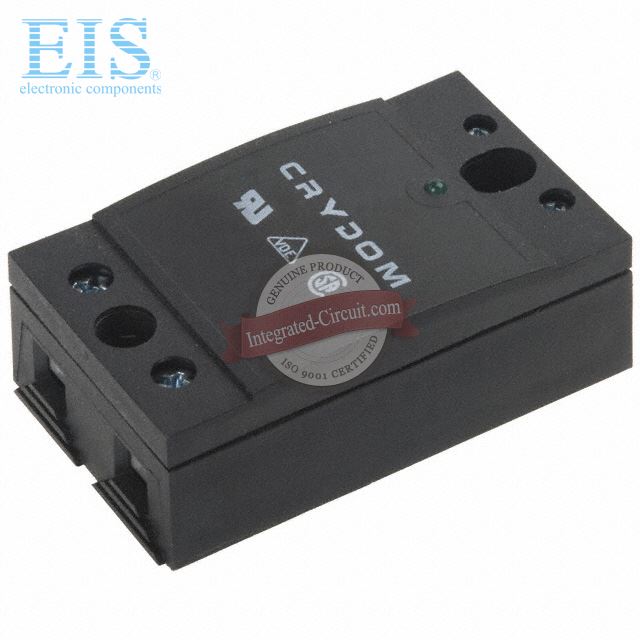

Crydom CMD2475
- Mfg. Part Number
- CMD2475
- Manufacturer
- Crydom
- Product Category
- Solid State Relays
- Brief Description
- RELAY SSR SCR 75A 280V PNL MNT
- Datasheet Download
- CMD2475.pdf
Availability of CMD2475
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 214.36000
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of CMD2475, we specialize in Crydom all series electronic components. CMD2475 can be shipped within 24 hours after order. If you have any demands for CMD2475, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- CMD2475 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
CMD2475
| Internal Part Number | EIS-CMD2475 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| 3D Model | CMD/CMA Series.satCMD/CMA Series.dwgCMD/CMA Series.stp | |
| Standard Package | 10 | |
| Category | Relays | |
| Family | Solid State Relays | |
| Series | CMD24 | |
| Packaging | Bulk | |
| Circuit | SPST-NO (1 Form A) | |
| Output Type | AC, Zero Cross | |
| On-State Resistance | - | |
| Load Current | 75A | |
| Voltage - Input | 3 ~ 32VDC | |
| Voltage - Load | 24 ~ 280 V | |
| Mounting Type | Chassis Mount or Panel Mount | |
| Termination Style | Screw Terminal | |
| Package / Case | Hockey Puck | |
| Supplier Device Package | - | |
| Relay Type | Relay | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | CMD2475 | |
| Related Links | CMD, CMD2475 Datasheet, Crydom Distributor | |
CMD2475 Details Description
