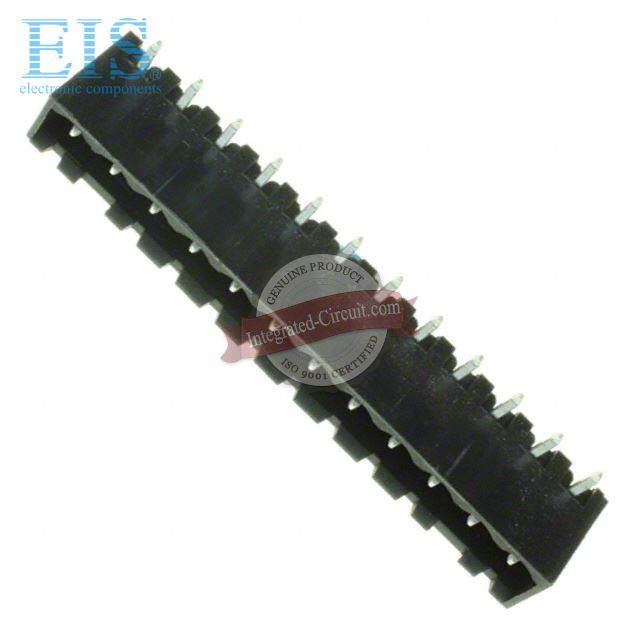

Sullins Connector Solutions EBA35DCCS
- Mfg. Part Number
- EBA35DCCS
- Manufacturer
- Sullins Connector Solutions
- Product Category
- Card Edge Connectors - Edgeboard Connectors
- Brief Description
- CONN EDGECARD 70POS .125"
- Datasheet Download
- EBA35DCCS.pdf
Availability of EBA35DCCS
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 8.04800
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of EBA35DCCS, we specialize in Sullins Connector Solutions all series electronic components. EBA35DCCS can be shipped within 24 hours after order. If you have any demands for EBA35DCCS, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- EBA35DCCS Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
EBA35DCCS
| Internal Part Number | EIS-EBA35DCCS | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Series | - | |
| Packaging | Tray | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | 35 | |
| Number of Positions | 70 | |
| Card Thickness | 0.062" (1.57mm) | |
| Number of Rows | 2 | |
| Pitch | 0.125" (3.18mm) | |
| Features | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Contact Type | Hairpin Bellows | |
| Color | - | |
| Flange Feature | Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia | |
| Operating Temperature | -65°C ~ 125°C | |
| Material - Insulation | Polybutylene Terephthalate (PBT) | |
| Read Out | Dual | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | EBA35DCCS | |
| Related Links | EBA3, EBA35DCCS Datasheet, Sullins Connector Solutions Distributor | |
EBA35DCCS Details Description
