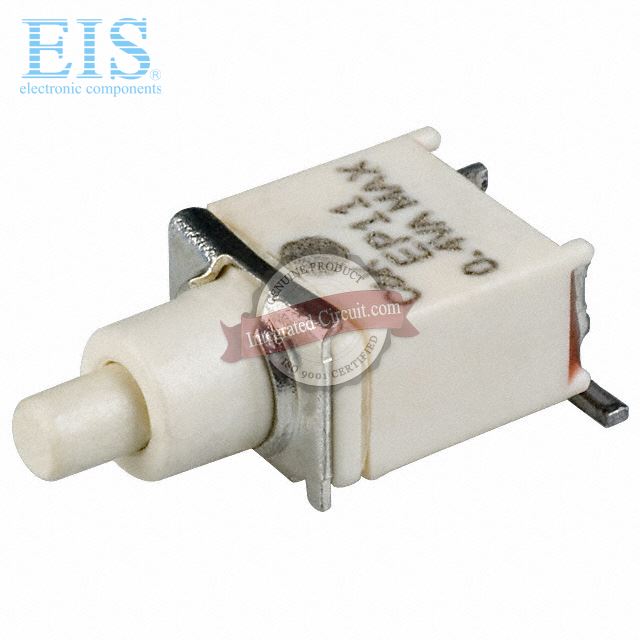

C&K Components EP11SD1SAPE
.jpg)
- Mfg. Part Number
- EP11SD1SAPE
- Manufacturer
- C&K Components
- Product Category
- Pushbutton Switches
- Brief Description
- SWITCH PUSH SPST-NO 0.4VA 20V
- Datasheet Download
- EP11SD1SAPE.pdf
Availability of EP11SD1SAPE
Available Quantity
5620 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 2.68048
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of EP11SD1SAPE, we specialize in C&K Components all series electronic components. EP11SD1SAPE can be shipped within 24 hours after order. If you have any demands for EP11SD1SAPE, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- EP11SD1SAPE Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
EP11SD1SAPE
| Internal Part Number | EIS-EP11SD1SAPE | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sealed Switch – Part 1 Sealed Switch – Part 2 Sealed Switch – Part 3 Sealed Switch – Part 4 Introduction to Electromechanical Switches | |
| 3D Model | EP11SD1SAPE.stpEP11SD1SAPE.pdf | |
| PCN Design/Specification | EP Series Material 01/Jul/2009 | |
| Standard Package | 600 | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Series | EP | |
| Packaging | Tape & Reel (TR) | |
| Type | Standard | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Round, Plunger | |
| Color - Actuator/Cap | White | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Ingress Protection | IP57 - Dust Protected, Waterproof | |
| Features | Epoxy Sealed Terminals | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 60,000 Cycles | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | EP11SD1SAPE | |
| Related Links | EP11S, EP11SD1SAPE Datasheet, C&K Components Distributor | |
EP11SD1SAPE Details Description
