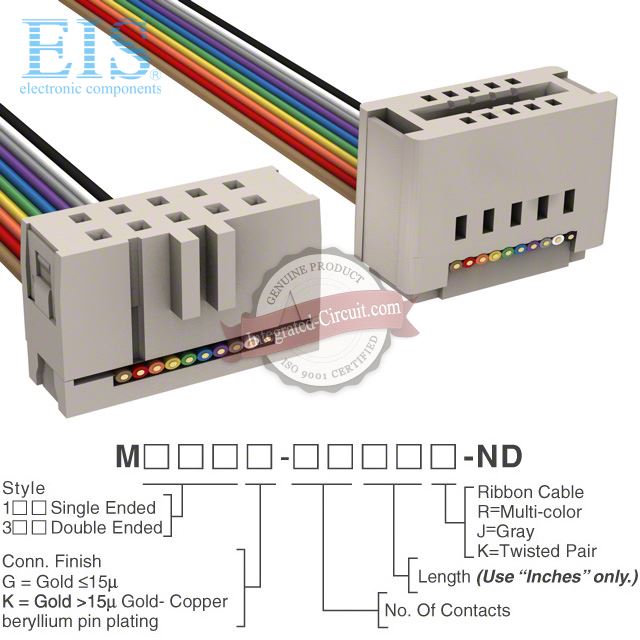

3M M3TEK-1036R
- Mfg. Part Number
- M3TEK-1036R
- Manufacturer
- 3M
- Product Category
- Rectangular Cable Assemblies
- Brief Description
- IDC CABLE - MSD10K/MC10M/MCE10K
- Datasheet Download
- M3TEK-1036R.pdf
Availability of M3TEK-1036R
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 5.11932
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of M3TEK-1036R, we specialize in 3M all series electronic components. M3TEK-1036R can be shipped within 24 hours after order. If you have any demands for M3TEK-1036R, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- M3TEK-1036R Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
M3TEK-1036R
| Internal Part Number | EIS-M3TEK-1036R | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Cable Matters | |
| Standard Package | 1 | |
| Category | Cable Assemblies | |
| Family | Rectangular Cable Assemblies | |
| Series | - | |
| Connector Type | Socket to Card Edge | |
| Number of Positions | 10 | |
| Number of Rows | 2 | |
| Pitch - Connector | 0.100" (2.54mm) | |
| Pitch - Cable | 0.050" (1.27mm) | |
| Length | 3.00' (914.40mm) | |
| Features | Polarizing Key | |
| Color | Multiple, Ribbon | |
| Shielding | Unshielded | |
| Usage | - | |
| Cable Termination | IDC | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | M3TEK-1036R | |
| Related Links | M3TEK, M3TEK-1036R Datasheet, 3M Distributor | |
