ON Semiconductor NB100LVEP221FAG
- Mfg. Part Number
- NB100LVEP221FAG
- Manufacturer
- ON Semiconductor
- Product Category
- Clock/Timing - Clock Buffers, Drivers
- Brief Description
- IC CLK BUFFER 2:20 1GHZ 52LQFP
- Datasheet Download
- NB100LVEP221FAG.pdf
Availability of NB100LVEP221FAG
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of NB100LVEP221FAG, we specialize in ON Semiconductor all series electronic components. NB100LVEP221FAG can be shipped within 24 hours after order. If you have any demands for NB100LVEP221FAG, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- NB100LVEP221FAG Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
NB100LVEP221FAG
| Internal Part Number | EIS-NB100LVEP221FAG | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 20/Jan/2015 | |
| Standard Package | 160 | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Clock Buffers, Drivers | |
| Series | 100LVEP | |
| Packaging | Tray | |
| Type | Fanout Buffer (Distribution), Multiplexer | |
| Number of Circuits | 1 | |
| Ratio - Input:Output | 2:20 | |
| Differential - Input:Output | Yes/Yes | |
| Input | ECL, HSTL, LVPECL | |
| Output | ECL, PECL | |
| Frequency - Max | 1GHz | |
| Voltage - Supply | 2.375 V ~ 3.8 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

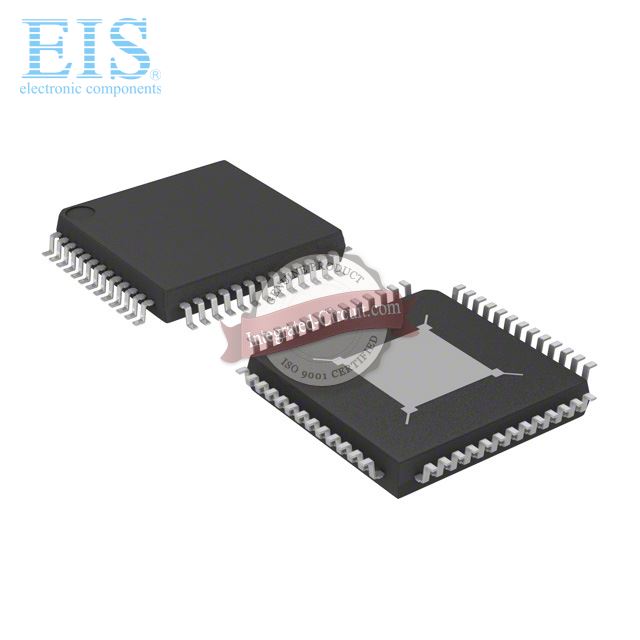

| Package / Case | 52-LQFP Exposed Pad | |
| Supplier Device Package | 52-LQFP (10x10) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | NB100LVEP221FAG | |
| Related Links | NB100LV, NB100LVEP221FAG Datasheet, ON Semiconductor Distributor | |
NB100LVEP221FAG Details Description
