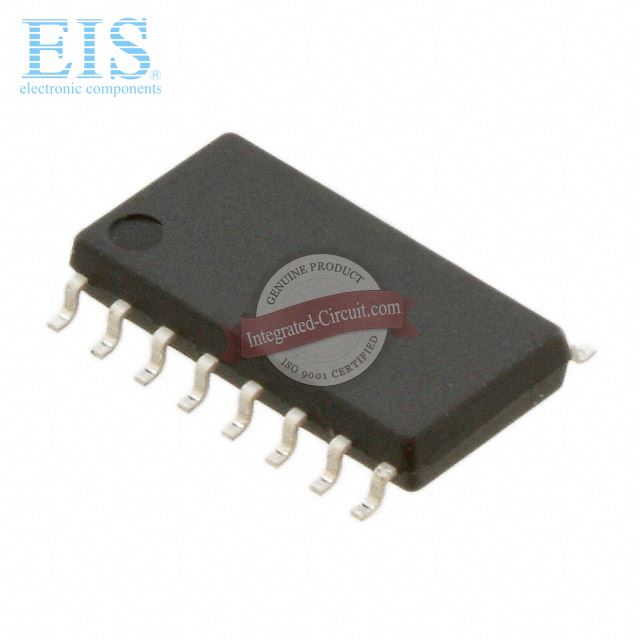

NJR/JRC Corporation NJM2283M
- Mfg. Part Number
- NJM2283M
- Manufacturer
- NJR/JRC Corporation
- Product Category
- Linear - Video Processing
- Brief Description
- IC VIDEO SWITCH 2-IN/3CH 16-DMP
- Datasheet Download
- NJM2283M.pdf
Availability of NJM2283M
Available Quantity
5638 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.85500
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of NJM2283M, we specialize in NJR/JRC Corporation all series electronic components. NJM2283M can be shipped within 24 hours after order. If you have any demands for NJM2283M, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- NJM2283M Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
NJM2283M
| Internal Part Number | EIS-NJM2283M | |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 50 | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Video Processing | |
| Series | - | |
| Packaging | Tube | |
| Type | Video Switch, 2-Input 1-Output | |
| Applications | Video Camera | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) | |
| Supplier Device Package | 16-DMP | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | NJM2283M | |
| Related Links | NJM2, NJM2283M Datasheet, NJR/JRC Corporation Distributor | |
NJM2283M Details Description
