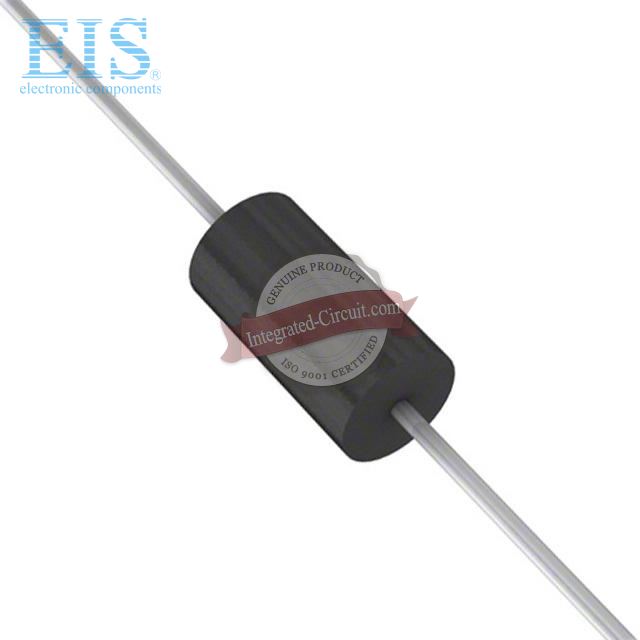

Littelfuse P6KE11A
;;2.jpg)
- Mfg. Part Number
- P6KE11A
- Manufacturer
- Littelfuse
- Product Category
- TVS - Diodes
- Brief Description
- TVS DIODE 9.4VWM 15.6VC DO204AC
- Datasheet Download
- P6KE11A.pdf
Availability of P6KE11A
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.10947
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of P6KE11A, we specialize in Littelfuse all series electronic components. P6KE11A can be shipped within 24 hours after order. If you have any demands for P6KE11A, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- P6KE11A Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
P6KE11A
| Internal Part Number | EIS-P6KE11A | |
| Lead Free Status / RoHS Status | Lead free by exemption / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Transient Voltage Suppression (TVS) Diodes | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Standard Package | 4,000 | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Series | P6KE | |
| Packaging | Tape & Reel (TR) | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 9.4V | |
| Voltage - Breakdown (Min) | 10.5V | |
| Voltage - Clamping (Max) @ Ipp | 15.6V | |
| Current - Peak Pulse (10/1000µs) | 39.1A | |
| Power - Peak Pulse | 600W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AC, DO-15, Axial | |
| Supplier Device Package | DO-204AC (DO-15) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | P6KE11A | |
| Related Links | P6K, P6KE11A Datasheet, Littelfuse Distributor | |
P6KE11A Details Description
