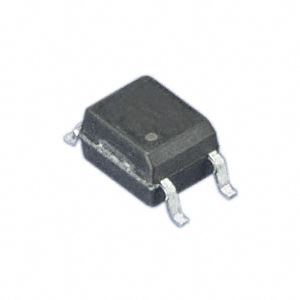

Sharp Microelectronics PC355NJ0000F
- Mfg. Part Number
- PC355NJ0000F
- Manufacturer
- Sharp Microelectronics
- Product Category
- Optoisolators - Transistor, Photovoltaic Output
- Brief Description
- OPTOISO 3.75KV DARL 4-MINI-FLAT
- Datasheet Download
- PC355NJ0000F.pdf
Availability of PC355NJ0000F
Available Quantity
8020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.30000
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of PC355NJ0000F, we specialize in Sharp Microelectronics all series electronic components. PC355NJ0000F can be shipped within 24 hours after order. If you have any demands for PC355NJ0000F, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- PC355NJ0000F Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
PC355NJ0000F
| Internal Part Number | EIS-PC355NJ0000F | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Material APET to PS 05/Sep/2013 | |
| Standard Package | 3,000 | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Number of Channels | 1 | |
| Voltage - Isolation | 3750Vrms | |
| Current Transfer Ratio (Min) | 600% @ 1mA | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 60µs, 53µs | |
| Input Type | DC | |
| Output Type | Darlington | |
| Voltage - Output (Max) | 35V | |
| Current - Output / Channel | 80mA | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | 1V | |
| Operating Temperature | -30°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, Gull Wing | |
| Supplier Device Package | 4-Mini-Flat | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | PC355NJ0000F | |
| Related Links | PC355N, PC355NJ0000F Datasheet, Sharp Microelectronics Distributor | |
PC355NJ0000F Details Description
