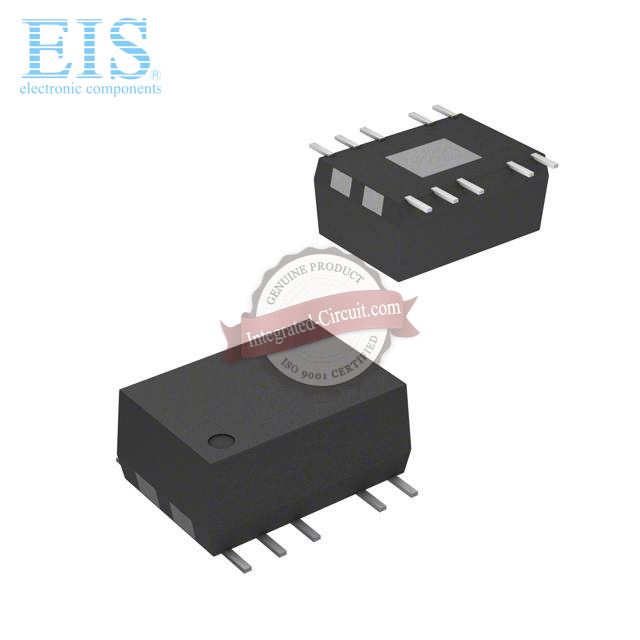

Recom Power R1D12-2412/HP
.jpg)
- Mfg. Part Number
- R1D12-2412/HP
- Manufacturer
- Recom Power
- Product Category
- DC DC Converters
- Brief Description
- CONV DC/DC 1W 24VIN +/-12VOUT
- Datasheet Download
- R1D12-2412/HP.pdf
Availability of R1D12-2412/HP
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 9.88788
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of R1D12-2412/HP, we specialize in Recom Power all series electronic components. R1D12-2412/HP can be shipped within 24 hours after order. If you have any demands for R1D12-2412/HP, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- R1D12-2412/HP Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
R1D12-2412/HP
| Internal Part Number | EIS-R1D12-2412/HP | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 33 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Series | ECONOLINE R1D | |
| Packaging | Tube | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 21.6V | |
| Voltage - Input (Max) | 26.4V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | -12V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 42mA, 42mA | |
| Power (Watts) - Manufacture Series | 1W | |
| Voltage - Isolation | 3kV (3000V) | |
| Features | SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-SMD Module (10 Leads) | |
| Size / Dimension | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | |
| Operating Temperature | -40°C ~ 100°C | |
| Efficiency | 80% | |
| Power (Watts) - Max | 1W | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | R1D12-2412/HP | |
| Related Links | R1D12-, R1D12-2412/HP Datasheet, Recom Power Distributor | |
