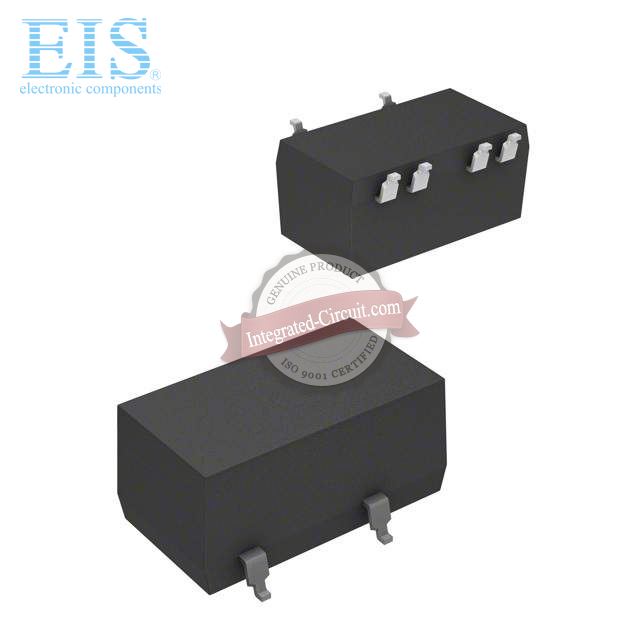

Recom Power RZ-1505S
.jpg)
- Mfg. Part Number
- RZ-1505S
- Manufacturer
- Recom Power
- Product Category
- DC DC Converters
- Brief Description
- CONV DC/DC 0.5W 15VIN 05VOUT
- Datasheet Download
- RZ-1505S.pdf
Availability of RZ-1505S
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of RZ-1505S, we specialize in Recom Power all series electronic components. RZ-1505S can be shipped within 24 hours after order. If you have any demands for RZ-1505S, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- RZ-1505S Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
RZ-1505S
| Internal Part Number | EIS-RZ-1505S | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 33 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Series | ECONOLINE RZ | |
| Packaging | Tube | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 14.25V | |
| Voltage - Input (Max) | 15.75V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 100mA | |
| Power (Watts) - Manufacture Series | 500mW | |
| Voltage - Isolation | 1kV (1000V) | |
| Features | SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-SMD Module (6 Leads) | |
| Size / Dimension | 0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm x 7.3mm) | |
| Operating Temperature | -40°C ~ 70°C | |
| Efficiency | 50% | |
| Power (Watts) - Max | 500mW | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | RZ-1505S | |
| Related Links | RZ-1, RZ-1505S Datasheet, Recom Power Distributor | |
RZ-1505S Details Description
