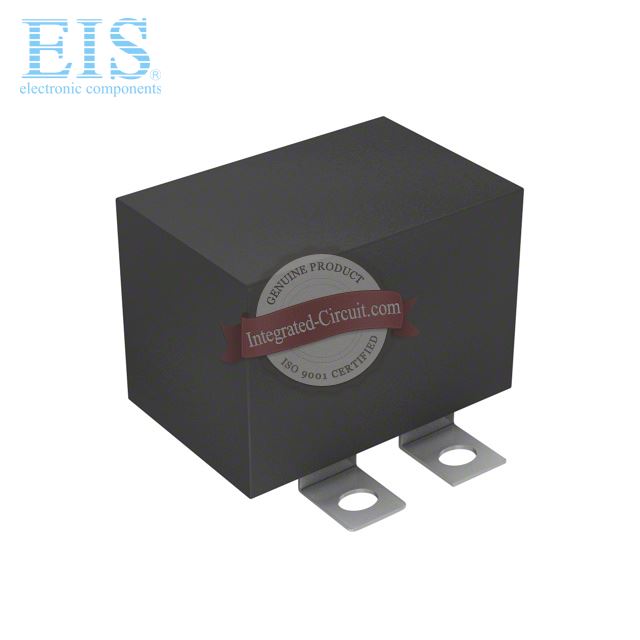

Cornell Dubilier Electronics SCD205K162A3Z25-F
- Mfg. Part Number
- SCD205K162A3Z25-F
- Manufacturer
- Cornell Dubilier Electronics
- Product Category
- Film Capacitors
- Brief Description
- CAP FILM 2UF 10% 1.6KVDC SCREW
- Datasheet Download
- SCD205K162A3Z25-F.pdf
Availability of SCD205K162A3Z25-F
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 28.31000
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of SCD205K162A3Z25-F, we specialize in Cornell Dubilier Electronics all series electronic components. SCD205K162A3Z25-F can be shipped within 24 hours after order. If you have any demands for SCD205K162A3Z25-F, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- SCD205K162A3Z25-F Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
SCD205K162A3Z25-F
| Internal Part Number | EIS-SCD205K162A3Z25-F | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Series | SCD | |
| Packaging | Bulk | |
| Capacitance | 2µF | |
| Tolerance | ±10% | |
| Voltage Rating - AC | 630V | |
| Voltage Rating - DC | 1600V (1.6kV) | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | 5 mOhm | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Chassis Mount | |
| Package / Case | Rectangular Box | |
| Size / Dimension | 2.626" L x 1.752" W (66.70mm x 44.50mm) | |
| Height - Seated (Max) | 1.827" (46.40mm) | |
| Termination | Screw Terminals | |
| Lead Spacing | 1.000" (25.40mm) | |
| Applications | Snubber | |
| Features | - | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SCD205K162A3Z25-F | |
| Related Links | SCD205K1, SCD205K162A3Z25-F Datasheet, Cornell Dubilier Electronics Distributor | |
