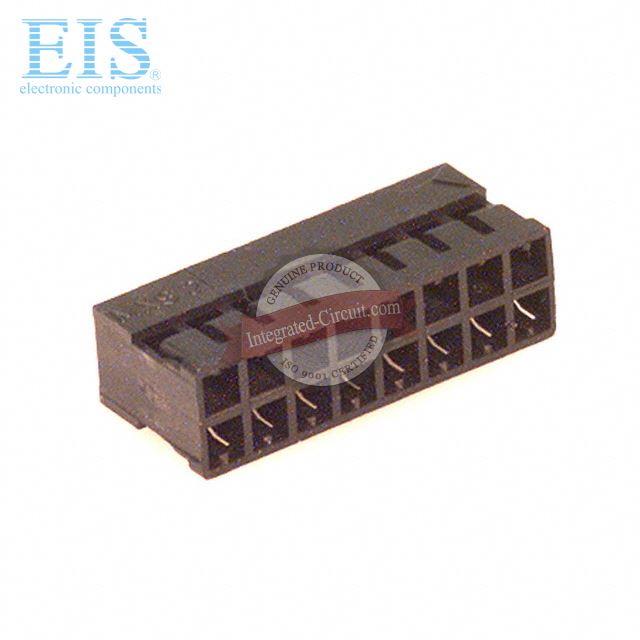

Samtec, Inc. SDL-133-TT-10
- Mfg. Part Number
- SDL-133-TT-10
- Manufacturer
- Samtec, Inc.
- Product Category
- Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets
- Brief Description
- CONN RCPT .100" 66POS DUAL TIN
- Datasheet Download
- SDL-133-TT-10.pdf
Availability of SDL-133-TT-10
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of SDL-133-TT-10, we specialize in Samtec, Inc. all series electronic components. SDL-133-TT-10 can be shipped within 24 hours after order. If you have any demands for SDL-133-TT-10, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- SDL-133-TT-10 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
SDL-133-TT-10
| Internal Part Number | EIS-SDL-133-TT-10 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Standard Package | 1 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets | |
| Series | SDL | |
| Packaging | Tube | |
| Connector Type | Receptacle | |
| Number of Positions | 66 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Height Stacking (Mating) | - | |
| Height Above Board | 0.122" (3.10mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Features | - | |
| Color | Black | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SDL-133-TT-10 | |
| Related Links | SDL-13, SDL-133-TT-10 Datasheet, Samtec, Inc. Distributor | |
