Vishay Semiconductor/Opto Division VO2223A
- Mfg. Part Number
- VO2223A
- Manufacturer
- Vishay Semiconductor/Opto Division
- Product Category
- Optoisolators - Triac, SCR Output
- Brief Description
- OPTOISOLTR 5.3KV PWR TRIAC 8DIP
- Datasheet Download
- VO2223A.pdf
Availability of VO2223A
Available Quantity
21398 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.50400
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of VO2223A, we specialize in Vishay Semiconductor/Opto Division all series electronic components. VO2223A can be shipped within 24 hours after order. If you have any demands for VO2223A, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- VO2223A Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
VO2223A
| Internal Part Number | EIS-VO2223A | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | VO2223/3A Phototriacs | |
| Featured Product | Power Phototriacs | |
| Standard Package | 50 | |
| Category | Isolators | |
| Family | Optoisolators - Triac, SCR Output | |
| Series | - | |
| Packaging | Tube | |
| Output Type | Triac, Power | |
| Zero Crossing Circuit | No | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5300Vrms | |
| Voltage - Off State | 600V | |
| Static dV/dt (Min) | 210V/µs (Typ) | |
| Current - LED Trigger (Ift) (Max) | 10mA | |
| Current - On State (It (RMS)) (Max) | 1A | |
| Current - Hold (Ih) | 25mA | |
| Turn On Time | - | |
| Voltage - Forward (Vf) (Typ) | 1.4V (Max) | |
| Current - DC Forward (If) (Max) | 50mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |

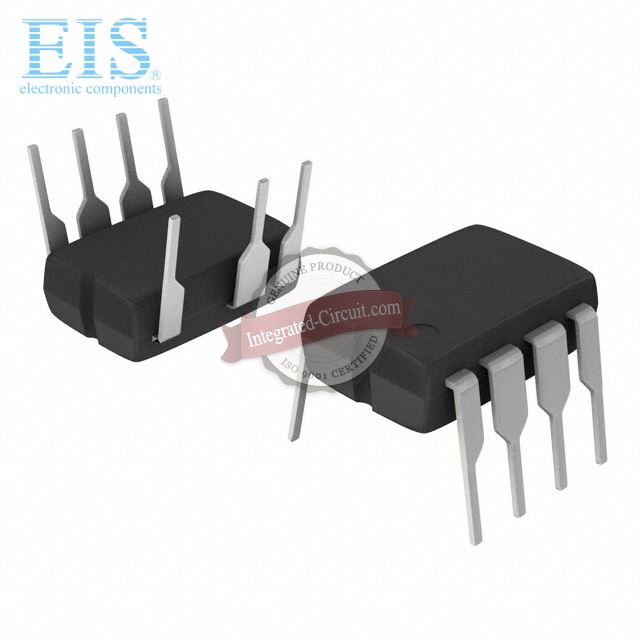

| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads | |
| Supplier Device Package | 8-DIP | |
| Approvals | cUR, UR | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | VO2223A | |
| Related Links | VO2, VO2223A Datasheet, Vishay Semiconductor/Opto Division Distributor | |
VO2223A Details Description
