Essentra Components (formerly Richco, Inc.) CDLCBST-10-01

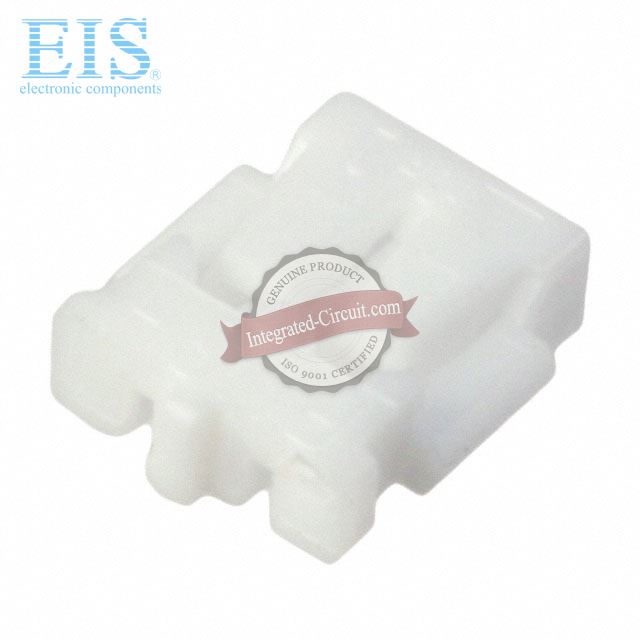

CDLCBST-10-01 picture photo
Mfg. Part Number
CDLCBST-10-01
Manufacturer
Product Category
Board Supports
Brief Description
CUPPED DUAL CBS TEARDROP 5/8"
Datasheet Download
CDLCBST-10-01.pdf
Availability of CDLCBST-10-01

Available Quantity

5020 Pieces

Can ship today


Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks

Marketing Price
$ 0.33048
Our Price
Quote by Email

QUANTITY



EIS Components is the stocking Distributor of CDLCBST-10-01, we specialize in Essentra Components (formerly Richco, Inc.) all series electronic components. CDLCBST-10-01 can be shipped within 24 hours after order. If you have any demands for CDLCBST-10-01, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
CDLCBST-10-01 Order Process
Add Parts to RFQ form
Submit RFQ
We reply within 24 hours
You confirm order
Payment
Ship out your order
Specifications of CDLCBST-10-01
Internal Part NumberEIS-CDLCBST-10-01
Lead Free Status / RoHS StatusLead free / RoHS Compliant
Moisture Sensitivity Level (MSL)
Production Status (Lifecycle)In Production
ConditionNew & Unused, Original Sealed
Standard Package1,000
Category Hardware, Fasteners, Accessories
FamilyBoard Supports
SeriesCDLCBST
Holding TypeSnap Lock
Mounting TypeSnap Lock
Between Board Height0.625" (15.88mm) 5/8"
Length - Overall-
Support Hole Diameter0.100" (2.54mm)
Support Panel Thickness0.062" (1.57mm) 1/16"
Mounting Hole Diameter0.100" (2.54mm)
Mounting Panel Thickness0.062" (1.57mm) 1/16"
FeaturesWinged
MaterialNylon
Weight0.001 KG
ApplicationEmail for details
Alternative Part (Replacement)CDLCBST-10-01
Related LinksCDLCBS, CDLCBST-10-01 Datasheet, Essentra Components (formerly Richco, Inc.) Distributor
CDLCBST-10-01 Details Description
