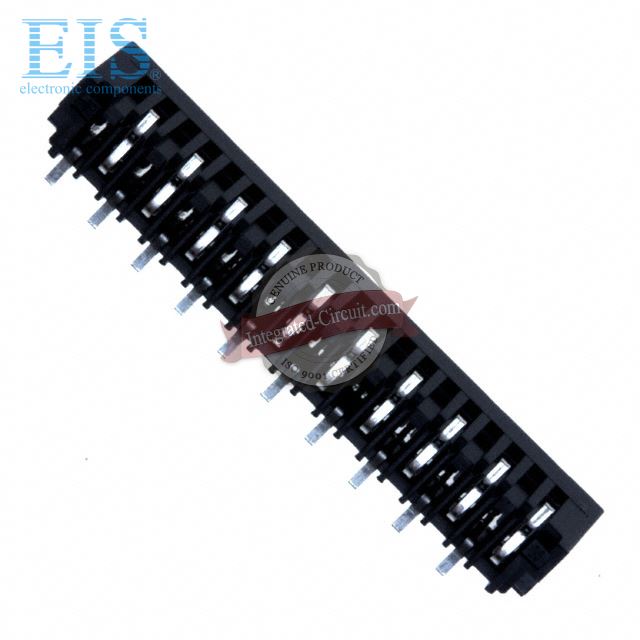

Sullins Connector Solutions ECC06DPSN
- Mfg. Part Number
- ECC06DPSN
- Manufacturer
- Sullins Connector Solutions
- Product Category
- Card Edge Connectors - Edgeboard Connectors
- Brief Description
- CONN EDGECARD 12POS .100"
- Datasheet Download
- ECC06DPSN.pdf
Availability of ECC06DPSN
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 4.04800
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of ECC06DPSN, we specialize in Sullins Connector Solutions all series electronic components. ECC06DPSN can be shipped within 24 hours after order. If you have any demands for ECC06DPSN, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- ECC06DPSN Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
ECC06DPSN
| Internal Part Number | EIS-ECC06DPSN | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Series | - | |
| Packaging | Tray | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | 6 | |
| Number of Positions | 12 | |
| Card Thickness | 0.062" (1.57mm) | |
| Number of Rows | 2 | |
| Pitch | 0.100" (2.54mm) | |
| Features | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Contact Type | Hairpin Bellows | |
| Color | - | |
| Flange Feature | - | |
| Operating Temperature | -65°C ~ 125°C | |
| Material - Insulation | Polybutylene Terephthalate (PBT) | |
| Read Out | Dual | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | ECC06DPSN | |
| Related Links | ECC0, ECC06DPSN Datasheet, Sullins Connector Solutions Distributor | |
ECC06DPSN Details Description
