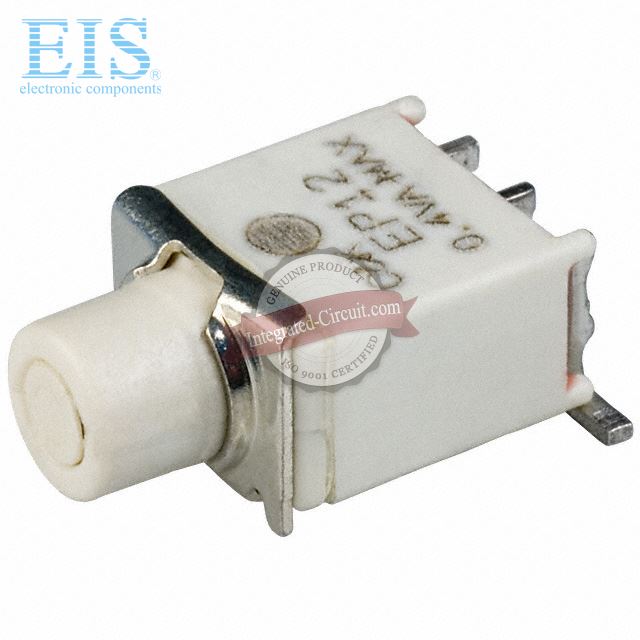

C&K Components EP12FPD1SAKE
.jpg)
- Mfg. Part Number
- EP12FPD1SAKE
- Manufacturer
- C&K Components
- Product Category
- Pushbutton Switches
- Brief Description
- SWITCH PUSH SPDT 0.4VA 20V
- Datasheet Download
- EP12FPD1SAKE.pdf
Availability of EP12FPD1SAKE
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of EP12FPD1SAKE, we specialize in C&K Components all series electronic components. EP12FPD1SAKE can be shipped within 24 hours after order. If you have any demands for EP12FPD1SAKE, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- EP12FPD1SAKE Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
EP12FPD1SAKE
| Internal Part Number | EIS-EP12FPD1SAKE | |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | EP Series Material 01/Jul/2009 | |
| Standard Package | 600 | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Series | EP | |
| Packaging | Tape & Reel (TR) | |
| Type | Standard | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 0.4VA (AC/DC) | |
| Voltage Rating - AC | 20V | |
| Voltage Rating - DC | 20V | |
| Actuator Type | Round, Plunger, Flush | |
| Color - Actuator/Cap | White | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination Style | Gull Wing | |
| Ingress Protection | IP57 - Dust Protected, Waterproof | |
| Features | Epoxy Sealed Terminals | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 30,000 Cycles | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | EP12FPD1SAKE | |
| Related Links | EP12FP, EP12FPD1SAKE Datasheet, C&K Components Distributor | |
EP12FPD1SAKE Details Description
