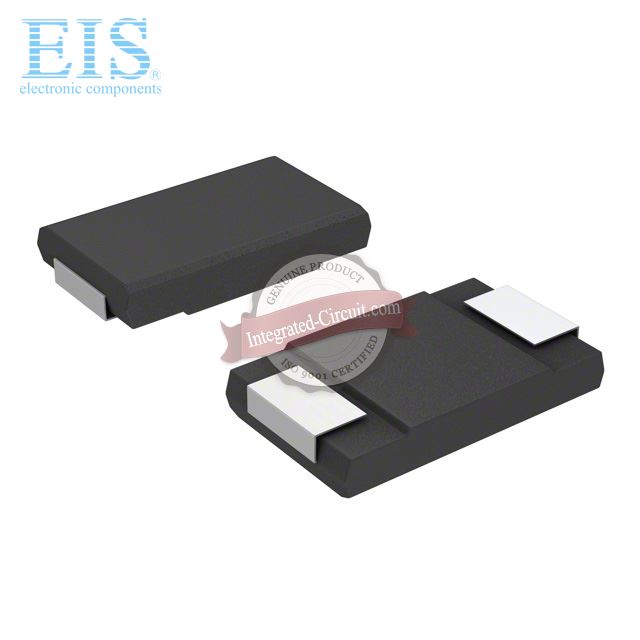

Cornell Dubilier Electronics ESRL220M08B
- Mfg. Part Number
- ESRL220M08B
- Manufacturer
- Cornell Dubilier Electronics
- Product Category
- Aluminum - Polymer Capacitors
- Brief Description
- CAP POLYMER 22UF 20% 8V SMD
- Datasheet Download
- ESRL220M08B.pdf
Availability of ESRL220M08B
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.91200
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of ESRL220M08B, we specialize in Cornell Dubilier Electronics all series electronic components. ESRL220M08B can be shipped within 24 hours after order. If you have any demands for ESRL220M08B, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- ESRL220M08B Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
ESRL220M08B
| Internal Part Number | EIS-ESRL220M08B | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 300 | |
| Category | Capacitors | |
| Family | Aluminum - Polymer Capacitors | |
| Series | ESRL | |
| Packaging | Bulk | |
| Capacitance | 22µF | |
| Tolerance | ±20% | |
| Voltage Rating | 8V | |
| ESR (Equivalent Series Resistance) | 35 mOhm | |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | |
| Operating Temperature | -55°C ~ 105°C | |
| Type | Polymer | |
| Applications | Bypass, Decoupling | |
| Ripple Current | 1.6A | |
| Impedance | - | |
| Lead Spacing | - | |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) | |
| Height - Seated (Max) | 0.043" (1.10mm) | |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) | |
| Mounting Type | Surface Mount | |
| Package / Case | 2917 (7343 Metric) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | ESRL220M08B | |
| Related Links | ESRL2, ESRL220M08B Datasheet, Cornell Dubilier Electronics Distributor | |
ESRL220M08B Details Description
