Cirrus Logic, Inc. WM8199SCDS/V
- Mfg. Part Number
- WM8199SCDS/V
- Manufacturer
- Cirrus Logic, Inc.
- Product Category
- Data Acquisition - Analog Front End (AFE)
- Brief Description
- IC AFE 16BIT 3CH 20MSPS 28SSOP
- Datasheet Download
- WM8199SCDS/V.pdf
Availability of WM8199SCDS/V
Available Quantity
5114 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 3.90000
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of WM8199SCDS/V, we specialize in Cirrus Logic, Inc. all series electronic components. WM8199SCDS/V can be shipped within 24 hours after order. If you have any demands for WM8199SCDS/V, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- WM8199SCDS/V Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
WM8199SCDS/V
| Internal Part Number | EIS-WM8199SCDS/V | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 47 | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Analog Front End (AFE) | |
| Series | - | |
| Packaging | Tube | |
| Number of Bits | 16 | |
| Number of Channels | 3 | |
| Power (Watts) | 358mW | |
| Voltage - Supply, Analog | 5V | |
| Voltage - Supply, Digital | 2.97 V ~ 3.63 V, 5V | |

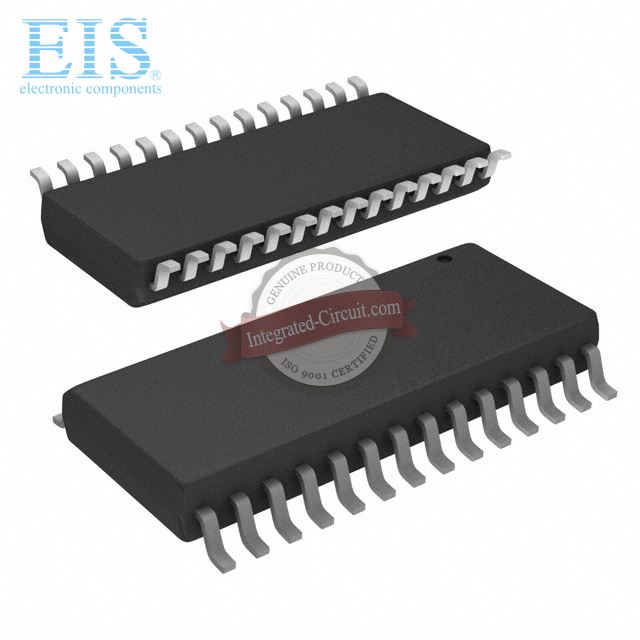

| Package / Case | 28-SSOP (0.209", 5.30mm Width) | |
| Supplier Device Package | 28-SSOP | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | WM8199SCDS/V | |
| Related Links | WM8199, WM8199SCDS/V Datasheet, Cirrus Logic, Inc. Distributor | |
