International Rectifier (Infineon Technologies Americas Corp.) IRSM005-800MHTR
- Mfg. Part Number
- IRSM005-800MHTR
- Manufacturer
- International Rectifier (Infineon Technologies Americas Corp.)
- Product Category
- PMIC - Full, Half-Bridge Drivers
- Brief Description

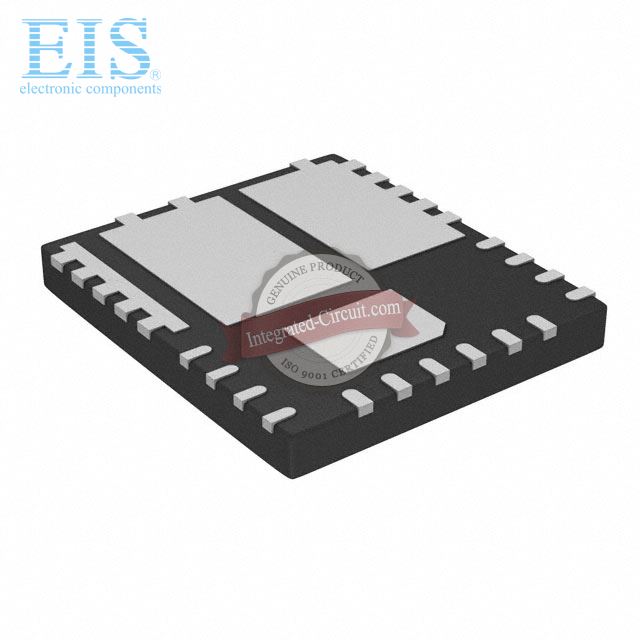

- IC GATE DRIVER 40V QFN
- Datasheet Download
- IRSM005-800MHTR.pdf
Availability of IRSM005-800MHTR
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 1.30625
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of IRSM005-800MHTR, we specialize in International Rectifier (Infineon Technologies Americas Corp.) all series electronic components. IRSM005-800MHTR can be shipped within 24 hours after order. If you have any demands for IRSM005-800MHTR, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- IRSM005-800MHTR Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
IRSM005-800MHTR
| Internal Part Number | EIS-IRSM005-800MHTR | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Solutions for 3D Printers | |
| Standard Package | 2,000 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Series | µIPM™ | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Half Bridge | |
| Applications | AC Motors, DC Motors, DC-DC Converters, General Purpose | |
| Interface | Logic | |
| Load Type | Inductive, Capacitive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | 2.7 mOhm | |
| Current - Output / Channel | 80A | |
| Current - Peak Output | - | |
| Voltage - Supply | 10 V ~ 20 V | |
| Voltage - Load | 40V (Max) | |
| Operating Temperature | 150°C (TJ) | |
| Features | Bootstrap Circuit | |
| Fault Protection | UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 27-PowerVQFN | |
| Supplier Device Package | 27-PQFN (7x8) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | IRSM005-800MHTR | |
| Related Links | IRSM005, IRSM005-800MHTR Datasheet, International Rectifier (Infineon Technologies Americas Corp.) Distributor | |
