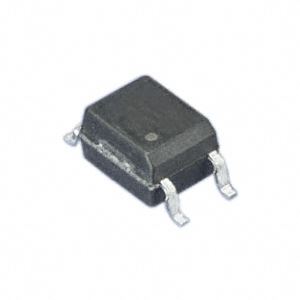

Sharp Microelectronics PC452
- Mfg. Part Number
- PC452
- Manufacturer
- Sharp Microelectronics
- Product Category
- Optoisolators - Transistor, Photovoltaic Output
- Brief Description
- OPTOISOLATOR 3.75KV DARL 4SMD
- Datasheet Download
- PC452.pdf
Availability of PC452
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of PC452, we specialize in Sharp Microelectronics all series electronic components. PC452 can be shipped within 24 hours after order. If you have any demands for PC452, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- PC452 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
PC452
| Internal Part Number | EIS-PC452 | |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Number of Channels | 1 | |
| Voltage - Isolation | 3750Vrms | |
| Current Transfer Ratio (Min) | 1000% @ 1mA | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 100µs, 20µs | |
| Input Type | DC | |
| Output Type | Darlington | |
| Voltage - Output (Max) | 350V | |
| Current - Output / Channel | 150mA | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | 1.2V | |
| Operating Temperature | -30°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, Gull Wing | |
| Supplier Device Package | 4-SMD | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | PC452 | |
| Related Links | PC, PC452 Datasheet, Sharp Microelectronics Distributor | |
PC452 Details Description
