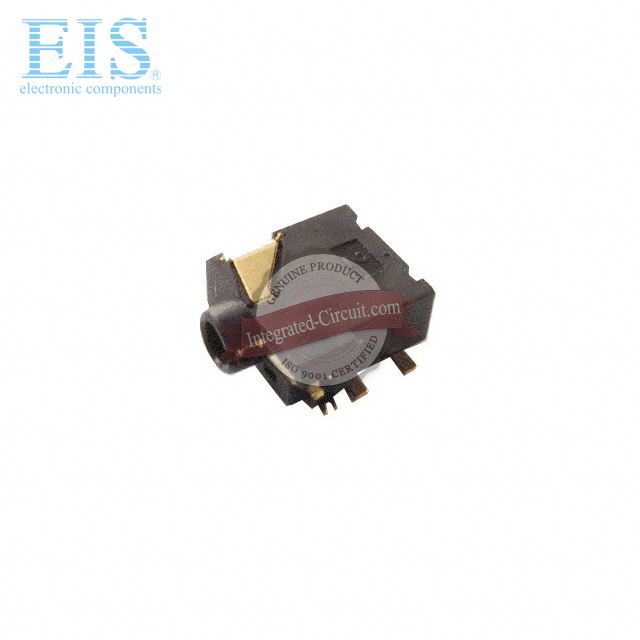

CUI Inc. SJ-42514-SMT-1
- Mfg. Part Number
- SJ-42514-SMT-1
- Manufacturer
- CUI Inc.
- Product Category
- Barrel - Audio Connectors
- Brief Description
- CONN AUDIO JACK 2.5MM 4COND SMT
- Datasheet Download
- SJ-42514-SMT-1.pdf
Availability of SJ-42514-SMT-1
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- N/A
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of SJ-42514-SMT-1, we specialize in CUI Inc. all series electronic components. SJ-42514-SMT-1 can be shipped within 24 hours after order. If you have any demands for SJ-42514-SMT-1, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- SJ-42514-SMT-1 Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
SJ-42514-SMT-1
| Internal Part Number | EIS-SJ-42514-SMT-1 | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | ||
| Production Status (Lifecycle) | Obsolete / Discontinued | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Surface-Mount Audio Connectors | |
| Standard Package | 156 | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Audio Connectors | |
| Series | - | |
| Packaging | - | |
| Connector Type | Phone Jack | |
| Gender | Female | |
| Signal Lines | Multiple | |
| Plug/Mating Plug Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | |
| Number of Positions/Contacts | 4 Conductors, 4 Contacts | |
| Internal Switch(s) | Does Not Contain Switch | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | - | |
| Color - Contact | Black | |
| Contact Material | Copper Alloy | |
| Contact Material - Plating | Gold | |
| Housing Material | Plastic | |
| Housing Color | Black | |
| Operating Temperature | -20°C ~ 85°C | |
| Voltage - Rated | 16VDC | |
| Current Rating | 300mA | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SJ-42514-SMT-1 | |
| Related Links | SJ-4251, SJ-42514-SMT-1 Datasheet, CUI Inc. Distributor | |
SJ-42514-SMT-1 Details Description
