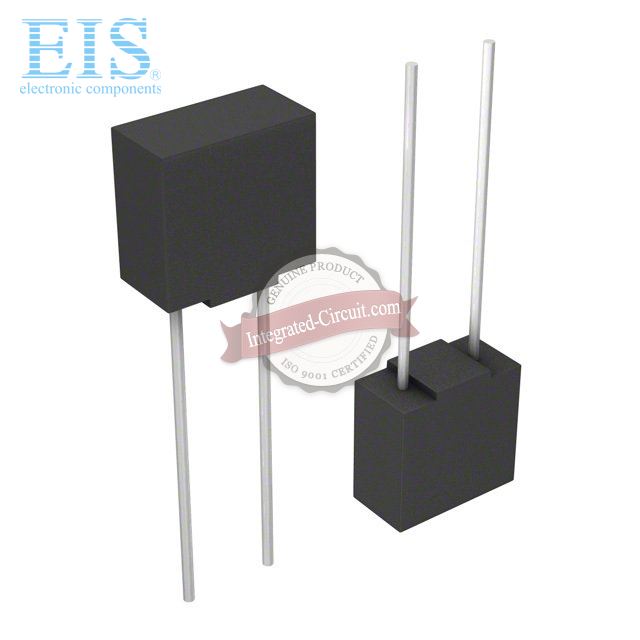

Eaton (formerly Cooper Bussmann) SS-5F-7A-AP
- Mfg. Part Number
- SS-5F-7A-AP
- Manufacturer
- Eaton (formerly Cooper Bussmann)
- Product Category
- Fuses
- Brief Description
- FUSE BOARD MOUNT 7A 125VAC RAD
- Datasheet Download
- SS-5F-7A-AP.pdf
Availability of SS-5F-7A-AP
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.73815
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of SS-5F-7A-AP, we specialize in Eaton (formerly Cooper Bussmann) all series electronic components. SS-5F-7A-AP can be shipped within 24 hours after order. If you have any demands for SS-5F-7A-AP, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- SS-5F-7A-AP Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
SS-5F-7A-AP
| Internal Part Number | EIS-SS-5F-7A-AP | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014 | |
| Standard Package | 1,000 | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Series | SS-5F | |
| Packaging | Tape & Box (TB) | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating | 7A | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Response Time | Fast | |
| Package / Case | Radial, Box | |
| Mounting Type | Through Hole | |
| Breaking Capacity @ Rated Voltage | 50A | |
| Melting I²t | 107.0518 | |
| Approvals | cULus, PSE | |
| Operating Temperature | -40°C ~ 85°C | |
| Color | - | |
| Size / Dimension | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) | |
| DC Cold Resistance | 0.0114 Ohm | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | SS-5F-7A-AP | |
| Related Links | SS-5F, SS-5F-7A-AP Datasheet, Eaton (formerly Cooper Bussmann) Distributor | |
SS-5F-7A-AP Details Description
