Trinamic Motion Control GmbH TMC2100-LA-T
- Mfg. Part Number
- TMC2100-LA-T
- Manufacturer
- Trinamic Motion Control GmbH
- Product Category
- PMIC - Motor Drivers, Controllers
- Brief Description

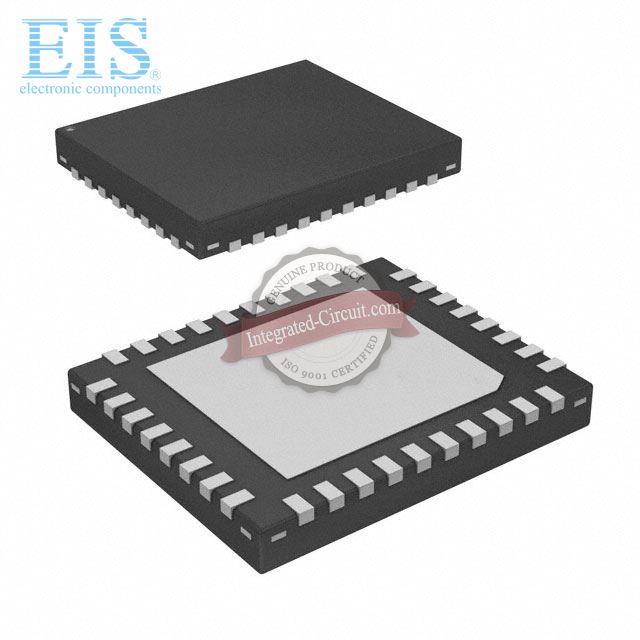

- IC STEPPER MOTOR DRIVER 36QFN
- Datasheet Download
- TMC2100-LA-T.pdf
Availability of TMC2100-LA-T
Available Quantity
9020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 2.50692
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of TMC2100-LA-T, we specialize in Trinamic Motion Control GmbH all series electronic components. TMC2100-LA-T can be shipped within 24 hours after order. If you have any demands for TMC2100-LA-T, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- TMC2100-LA-T Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
TMC2100-LA-T
| Internal Part Number | EIS-TMC2100-LA-T | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | TMC2100 Stepper Motor Driver | |
| Featured Product | TMC2130 and TMC2100 Stepper Driver | |
| Standard Package | 2,000 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Series | - | |
| Motor Type - Stepper | Bipolar | |
| Motor Type - AC, DC | - | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (4) | |
| Interface | Step/Direction | |
| Technology | Power MOSFET | |
| Step Resolution | 1 ~ 1/256 | |
| Applications | General Purpose | |
| Current - Output | 1.2A | |
| Voltage - Supply | 5.5 V ~ 46 V | |
| Voltage - Load | 5.5 V ~ 46 V | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 36-VFQFN Exposed Pad | |
| Supplier Device Package | 36-QFN (5x6) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | TMC2100-LA-T | |
| Related Links | TMC210, TMC2100-LA-T Datasheet, Trinamic Motion Control GmbH Distributor | |
