Semtech TS30011-M018QFNR
- Mfg. Part Number
- TS30011-M018QFNR
- Manufacturer
- Semtech
- Product Category
- PMIC - Voltage Regulators - DC DC Switching Regulators
- Brief Description
- IC REG BUCK 1.8V 1A SYNC 16-VQFN
- Datasheet Download
- TS30011-M018QFNR.pdf
Availability of TS30011-M018QFNR
Available Quantity
5020 Pieces
Can ship today
Ship from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 6 weeks
- Marketing Price
- $ 0.38556
- Our Price
- Quote by Email
EIS Components is the stocking Distributor of TS30011-M018QFNR, we specialize in Semtech all series electronic components. TS30011-M018QFNR can be shipped within 24 hours after order. If you have any demands for TS30011-M018QFNR, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
- TS30011-M018QFNR Order Process
- Add Parts to RFQ form
- Submit RFQ
- We reply within 24 hours
- You confirm order
- Payment
- Ship out your order
Specifications of
TS30011-M018QFNR
| Internal Part Number | EIS-TS30011-M018QFNR | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Production Status (Lifecycle) | In Production | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 3,300 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Fixed | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 24V | |
| Voltage - Output (Min/Fixed) | 1.8V | |
| Voltage - Output (Max) | - | |
| Current - Output | 1A | |
| Frequency - Switching | 1MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

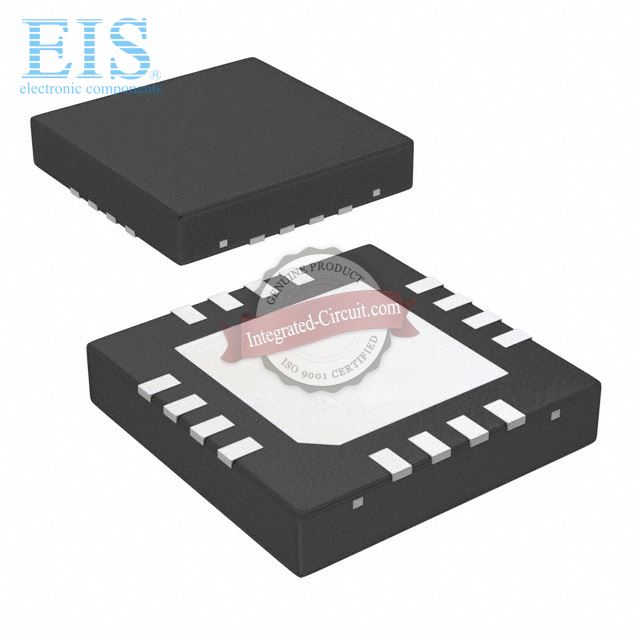

| Package / Case | 16-VFQFN Exposed Pad | |
| Supplier Device Package | 16-QFN (3x3) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Alternative Part (Replacement) | TS30011-M018QFNR | |
| Related Links | TS30011-, TS30011-M018QFNR Datasheet, Semtech Distributor | |
TS30011-M018QFNR Details Description
